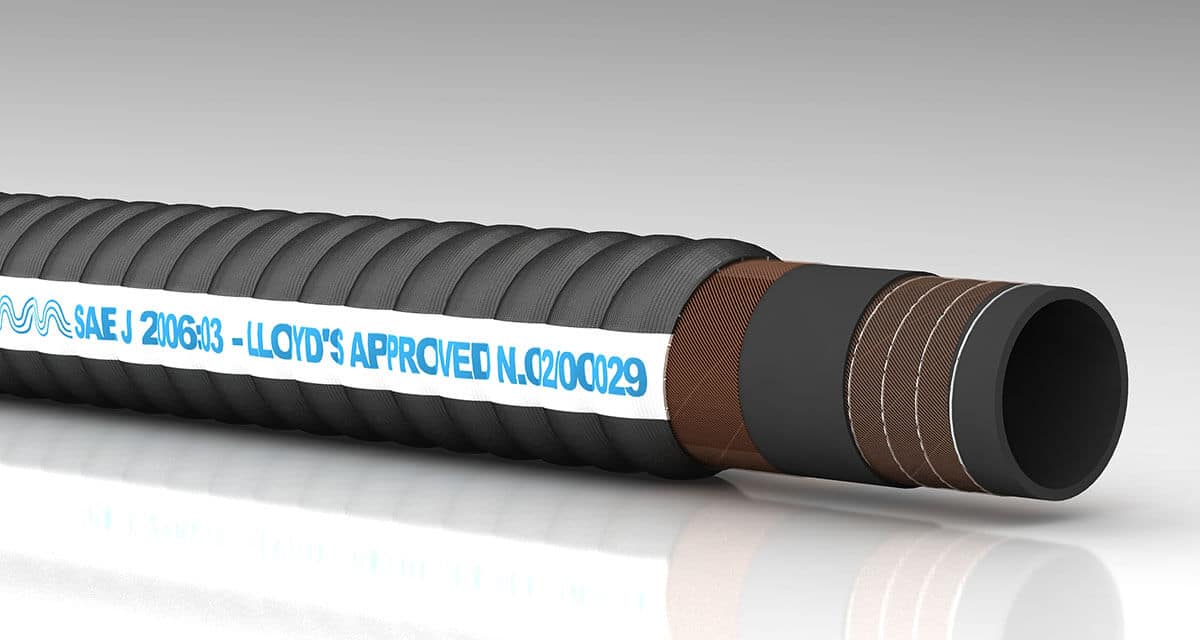

HOSE EXHAUST MARINE

HOSE EXHAUST MARINE

REF: 185307

  • Suitable for discharging of exhaust gas, using at heating and cooling systems of craft. Very flexible
  • TEMPERATURES Min: -30 °C Max: 100 °C
  • Black oil/fuel, sea water and gas burning resistant rubber
  • High tensile synthetic yarns and double steel helix wire
  • Corrugated fabric finished

€17.90 – €170.00

Clear
SKU: N/A Category: Brand:

Description

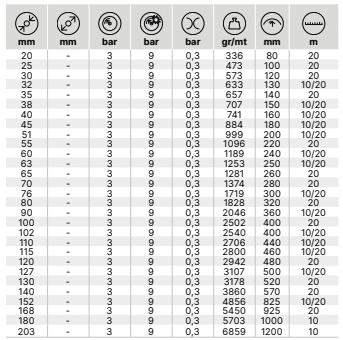

Model (ID) Inner Diameter (mm) Outer Diameter (mm) Weight (kg/m) Max. Pressure (bar) Min. Bending Radius (mm)
20mm 20 30 0.336 9 80
25mm 25 38 0.473 9 100
30mm 30 40 0.573 9 120
32mm 32 44 0.633 9 130
35mm 35 47 0.657 9 140
38mm 38 50 0.707 9 150
40mm 40 53 0.741 9 160
45mm 45 58 0.884 9 180
51mm 51 65 0.999 9 200
55mm 55 70 1.096 9 220
60mm 60 75 1.189 9 240
70mm 70 85 1.374 9 280
76mm 76 90 1.719 9 300
80mm 80 95 1.828 9 320
90mm 90 105 2.046 9 360
102mm 102 112 2.54 9 400
127mm 127 135 3.107 9 500
152mm 152 160 4.856 9 825
203mm 203 215 6.859 9 1,000

Additional information

Size

20MM, 25MM, 30MM, 32MM, 35MM, 38MM, 40MM, 45MM, 51MM, 55MM, 60MM, 70MM, 76MM, 80MM, 90MM, 102MM, 127MM, 152MM, 203MM
