Zinc-Collar-Anode

Zinc-EURO-SHAFT-anodes

ANODE COLLAR ZINC

REF: 85854

Anode Collar Zinc is made for sail boats with confined spaces, fitted with stainless steel bolts and nuts

Easy underwater installation
Bolt retaining washers prevent the anode from falling off
Full shaft contact: 100% circular radius
Interlocking halves
Extra alloy around fastener

€7.30 – €25.00

Size

Clear

SKU: N/A Category: Anodes

Description
Additional information

Description

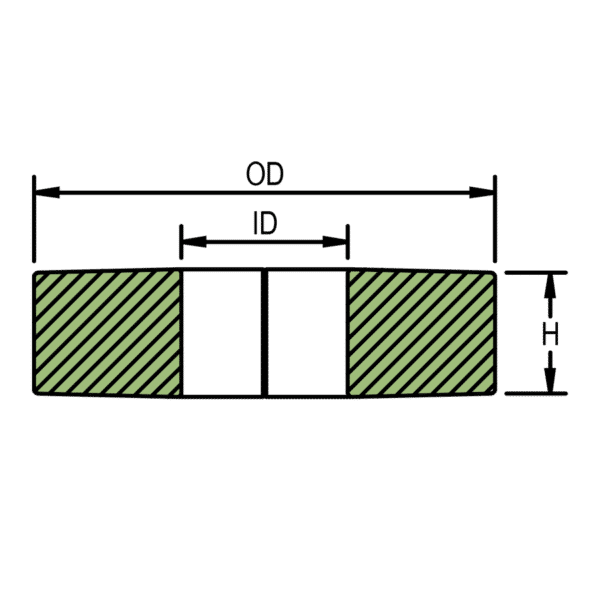

Zinc Collar Sacrificial Anode Dimensions EURO:

PID		LB	KG		H	OD	ID
				mm	15.5	60	22

				in	0.61	2.36	0.86
Zn	CMC22EURO	0.496	0.225
				mm	15.5	60	25

				in	0.61	2.36	0.98
Zn	CMC25EURO	0.485	0.22
				mm	15.5	60	30

				in	0.61	2.36	1.18
Zn	CMC30EURO	0.441	0.2
				mm	17.6	74	35

				in	0.69	2.91	1.37
Zn	CMC35EURO	0.793	0.36
				mm	17.6	74	40

				in	0.69	2.91	1.57
Zn	CMC40EURO	0.705	0.32
				mm	18	82	45

				in	0.71	3.23	1.77
Zn	CMC45EURO	0.864	0.392
				mm	18	82	50

				in	0.71	3.23	1.97
Zn	CMC50EURO	0.793	0.36

Zinc Collar Sacrificial Anode Dimensions IMPERIAL:

PID

LB

KG

H

OD

ID

				mm	31.75	68.58	28.57

				in	1.25	2.7	1.125
Zn	CMC04	1.232	0.559
				mm	31.75	68.58	31.75

				in	1.25	2.7	1.25
Zn	CMC05	1.208	0.548

Additional information

Size	19mm, 22mm, 25mm, 25.4mm (1"), 30mm, 31.8mm, 35mm, 38mm, 40mm, 45mm, 50mm, 50mm (thin)
