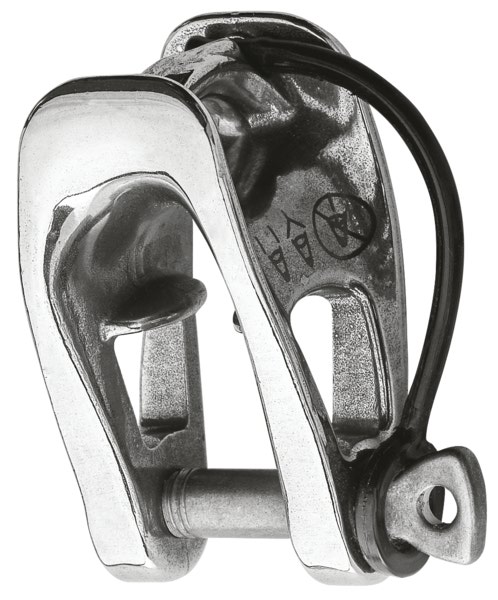

SHACKLE HALYARD S/S MX10 ROPE 12-14MM WICHARD

SHACKLE HALYARD S/S MX10 ROPE 12-14MM

REF: 42780

  • WICHARD Shackle Halyard S/S
  • MXEvo is the new generation of one-piece blocks developed by Wichard.
  • Thanks to the leash, this MXEvo version can’t loose its pin while opening, manipulating and closing the block.
  • The pin is forged in high-resistant 17.4PH stainless steel.
  • Main MXEvo features:
  • Dedicated to heavy load applications
  • Impressive working and breaking load limits
  • Captive pin on the standard version
  • Becket function to make tackles
  • Rope kept on track thanks to the fins
  • Optimized weight and dimensions
  • Easy opening – Easy rope installation
  • Two versions existing in three sizes
  • Limited rope wear thanks to the track conception
  • Monobloc item (without mechanical part) for a better reliability
  • For max rope size 14 mm

Out of stock

€115.00

Enquire About Product
SKU: WI1150S50000 Category: Brand:

Description

Applications:

  • 2:1 halyard purchase: mainsail, spinnaker, gennaker
  • Flying sail furler terminals: tensioning at the top or from the bottom

Material:

  • HR stainless steel 17.4 PH
Features
Weight 222 g
Length 77 mm
Width 44 mm
Working load 2640 Kg
Breaking load 6000 Kg
A 22 mm
B 22 mm
C 11 mm
Diameter 10 mm
Diameter 10 mm
