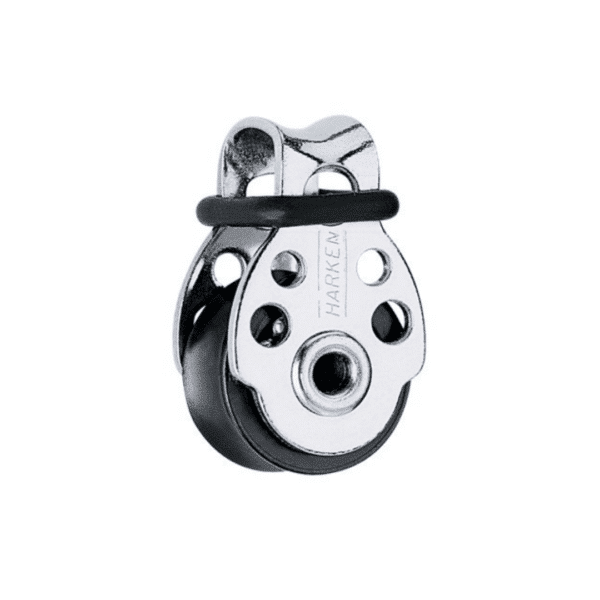

HARKEN BLOCK MICRO SNG W/BOW 19MM HK404

REF: 173216

  • The 16 mm is Harken’s smallest block.
  • It is perfect for small synthetic control lines found on high-tech dinghies.
  • The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load.
  • The 404 uses an O-ring to keep the line in the sheave during intermittent loading.
  • Sheave Ø (mm) 16 mm
  • Sheave Ø (in) 5/8 in
  • Maximum line Ø (mm) 5 mm
  • Maximum line Ø (in) 7/32 in
  • Maximum working load (kg) 113 kg
  • Maximum working load (lb) 250 lb

8 in stock

22.00

SKU: HK0404X00000 Categories: , Brand:

Description

Sheave Ø (mm) 16 mm
Sheave Ø (in) 5/8 in
Length (mm) 29 mm
Length (in) 1 1/8 in
Weight (g) 10 g
Weight (oz) .33 oz
Maximum line Ø (mm) 5 mm
Maximum line Ø (in) 7/32 in
Maximum working load (kg) 113 kg
Maximum working load (lb) 250 lb
Breaking load (kg) 544 kg
Breaking load (lb) 1200 lb
