EXTRACTION VENTILATOR IN-LINE 12V 2.5A 76MM

REF: 168751

  • 3” In-line Blowers provide ventilation for bilges, engine compartments, galleys and heads.
  • Designed for efficient, high output operation, these blowers feature our exclusive front and rear shaft seals and corrosion resistant motor housings for long life.
  • Compact and easily installed on any flat surface, In-line Blowers provide higher air flow and lower amp draw.

Voltage：12V

Air Flow (cfm/cmh)：130/220

Intake Pipe Dia：3″/76 mm

1 in stock

€23.00

SKU: SU9050X13012 Category:

Description

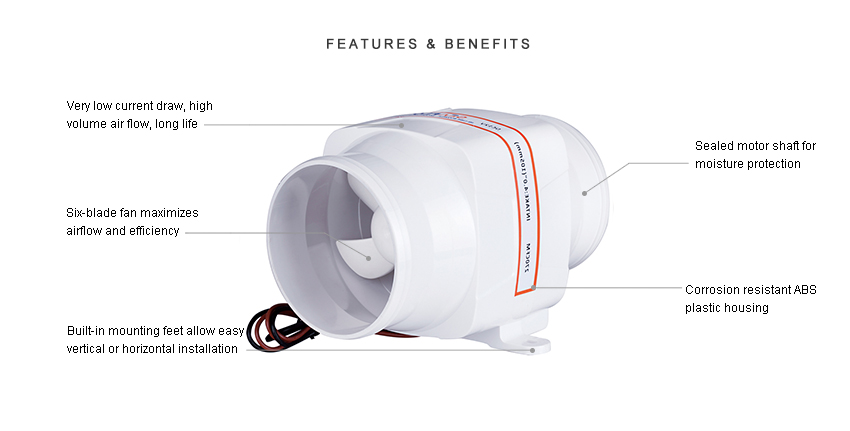

FEATURES & BENEFITS

•  Meets or exceeds ISO 8846 certification

•  Built-in mounting feet allows easy vertical or horizontal installation

•  Very low current draw, high volume air flow, long life

•  Four/Six-blade fan maximizes airflow and efficiency

•  Sealed motor shaft for moisture protection

•  Corrosion resistant ABS plastic housing


STANDARD CONFIGURATIONS

Model Voltage Air Flow (cfm/cmh) Max Draw (A) Fuse (A) Intake Pipe Dia
SFIB1-130-01 12V 130/220 2.5A 5.0A 3″/76
