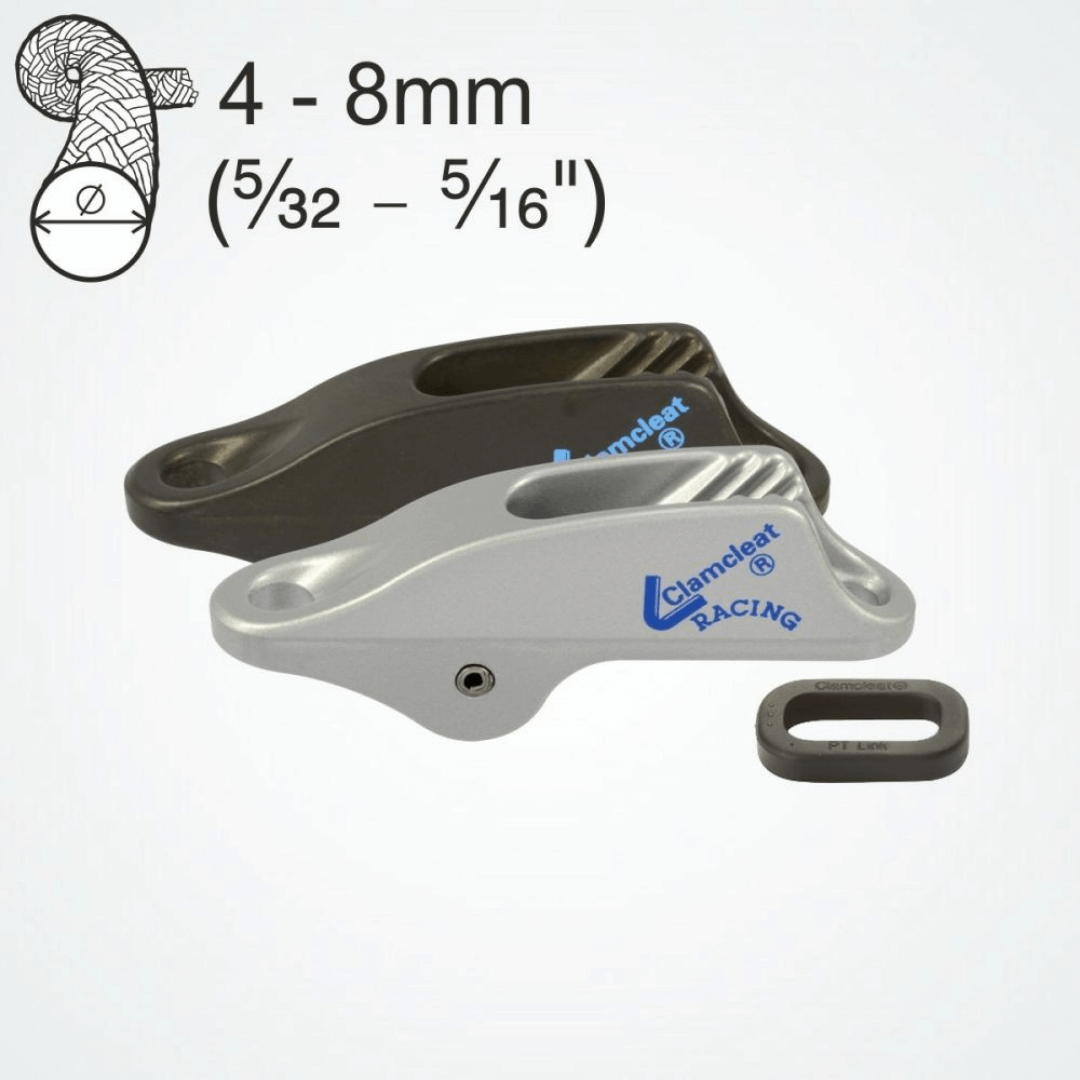

CLAM CLEAT TRAPEZE VANG

REF: 36580

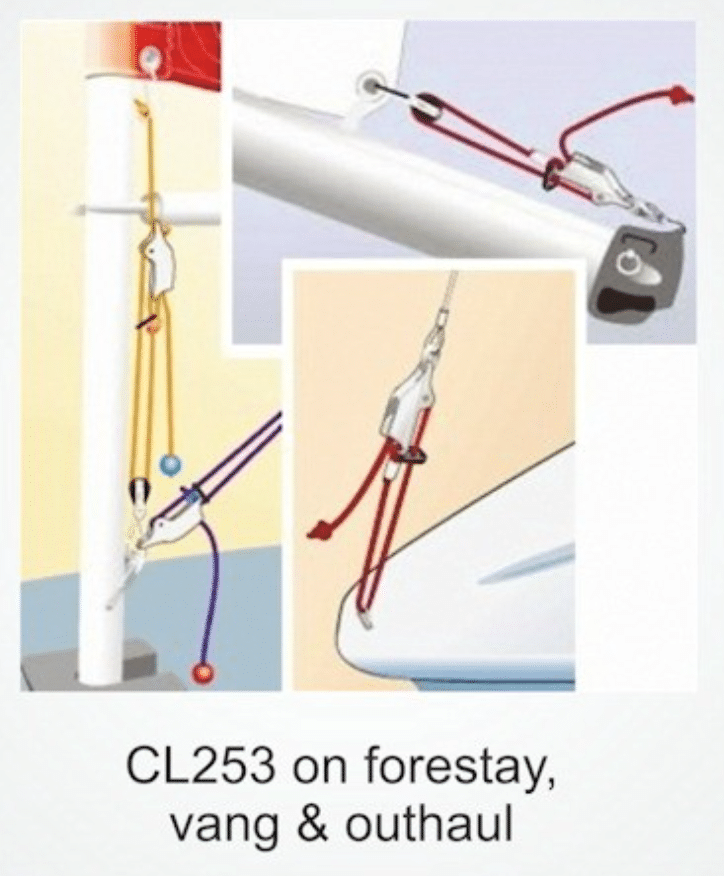

The Sailor’s preferred choice for adjusting dinghy trapeze lines. Also used for vangs & kicking straps; outhauls and small dinghy forestays. The Clamcleat® CL253 offers a light weight and compact solution for rope adjustment where a quick, positive lock, that is easy to release, is required.

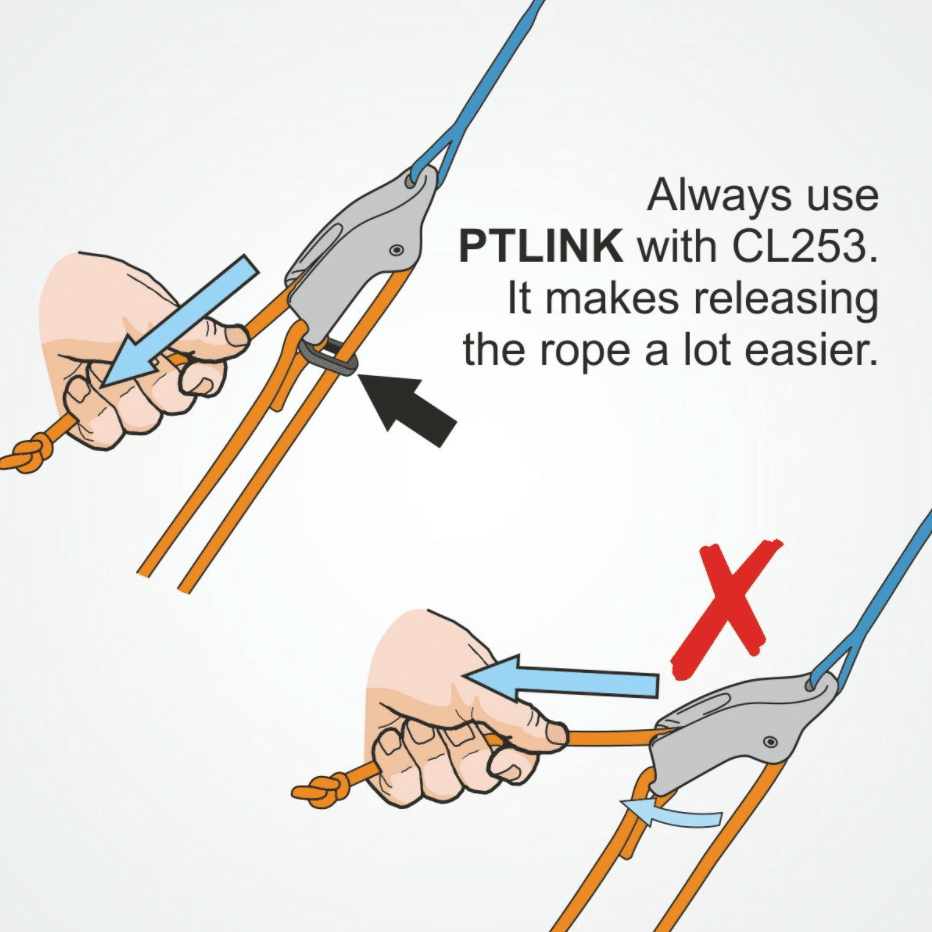

Each Clamcleat® CL253 is supplied with a black “link” (PTLINK). This makes releasing the rope a lot easier. For windsurfing, the CL253 can be used as part of a adjustable downhaul system.

10 in stock

€21.00

SKU: CC0253X00000 Categories: , Brand:

Description

Helpful hints:
– Use 16 plait rope for best results.

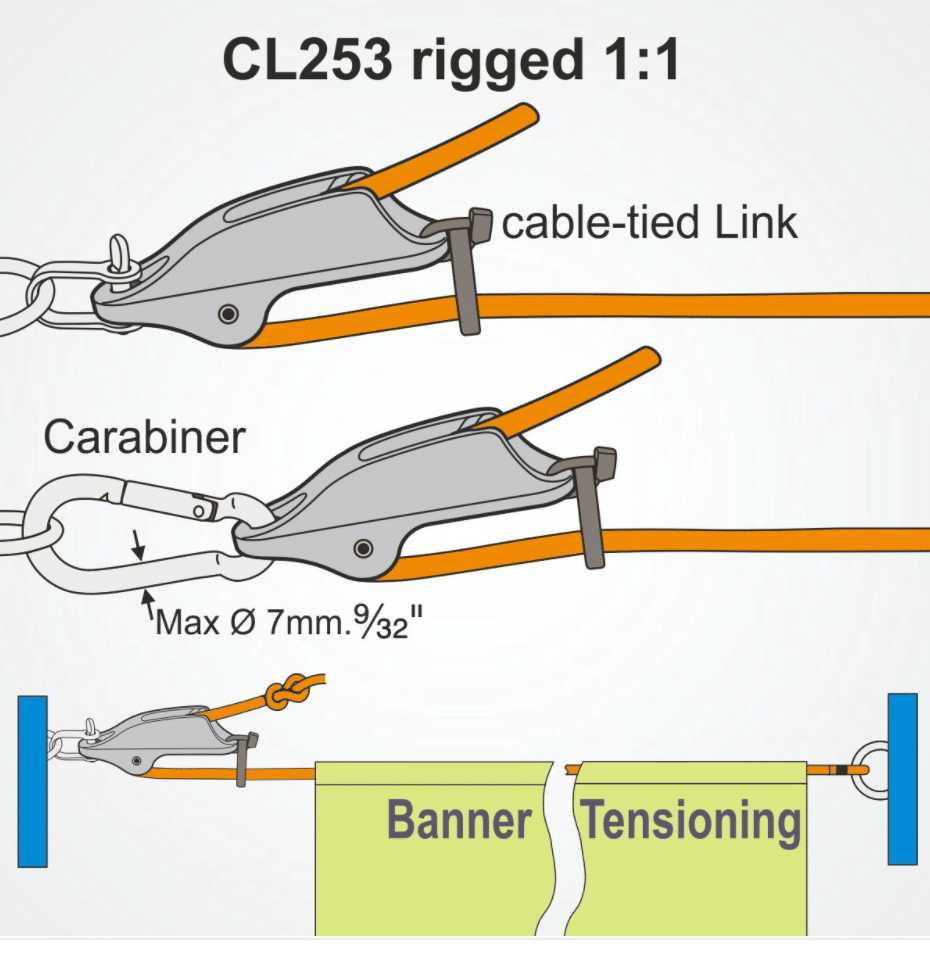

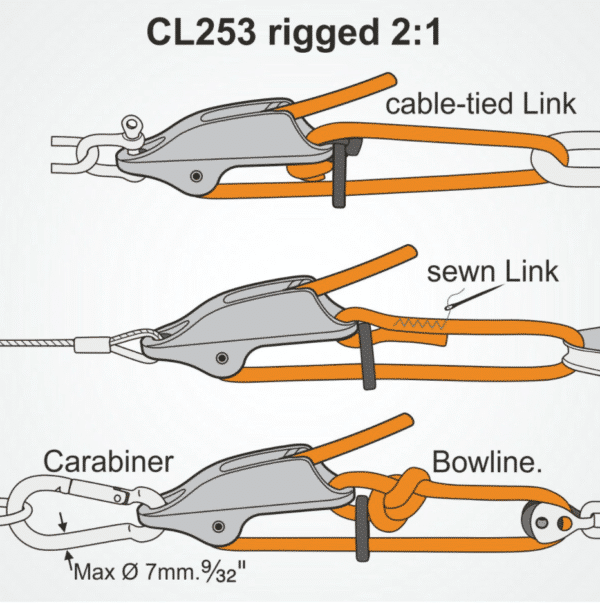

– Always use the supplied PTLINK for easier rope release. See rigging sketches on right.
– Waxing the rope can protect rigs from sand damage and revitalise a worn rig.
– Use heat shrink covers or electrical tape to prevent potential snagging points.
It can be also used for:
– Canvas structures
– Theatre lighting

Technical Details Metric Imperial
Rope Diameter 4 – 8mm 3/16 – 5/16″
Material Aluminium Aluminium
Hole Centres 72mm 2 13/16″
Length 90mm 3 9/16″
Width 18mm 11/16″
Height 35mm 1 3/8″
Bolt Size n/a n/a
Screw Size n/a n/a
Weight 46gms 1.6oz
