Description

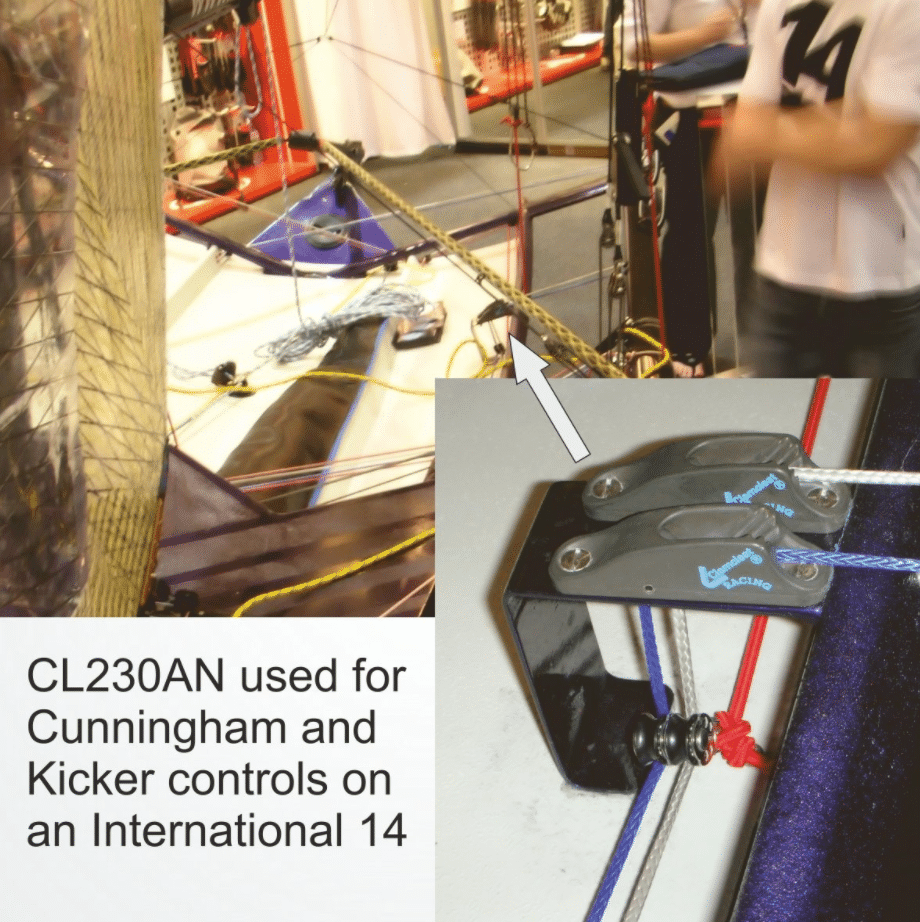

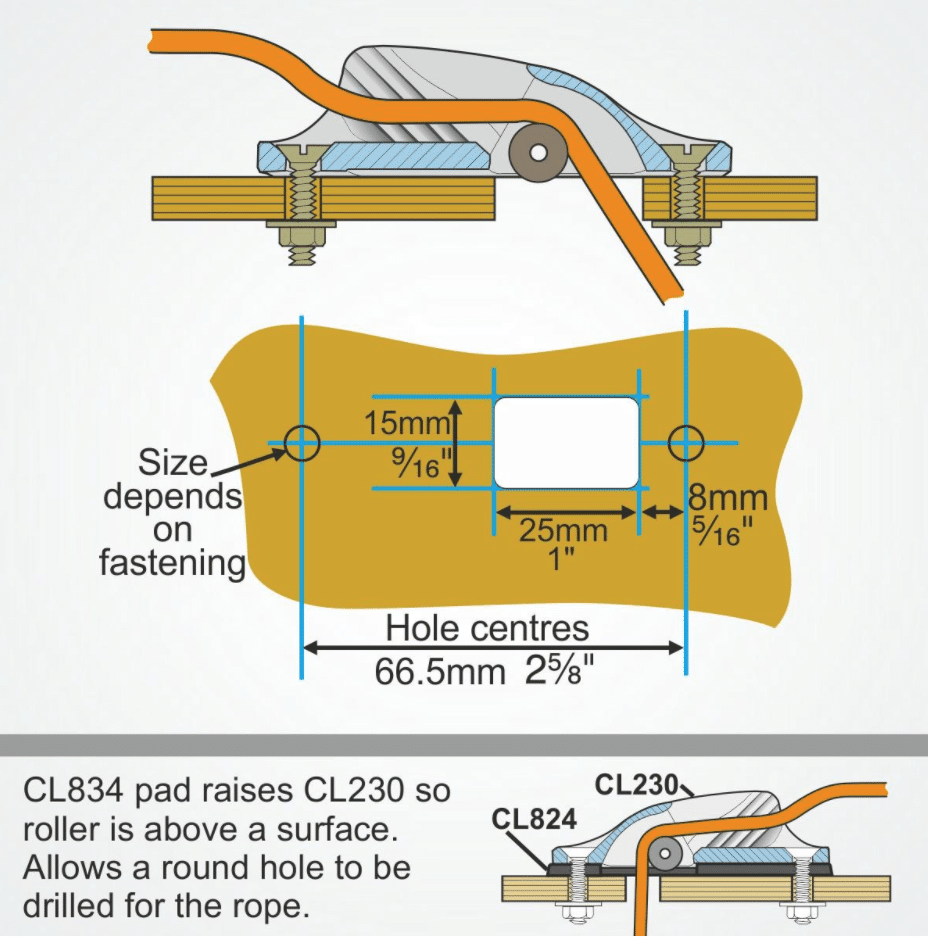

CL230 is ideal for through-deck and through-mast applications. Images show it being used for Cunningham and Kicker controls on an International 14 dinghy. Also for tensioning the sunshade on the Wajer 38 powerboat. The CL824 pad can be used to raise CL230 so roller is above a surface. Allows a round hole to be drilled for the rope.
The CL230 can also be rigged on a rope. We recommend using a PT230SSE to aid rope release. For trapeze adjustment, with 4 or 5mm ropes, a CL834 handle can be fitted. (A lower cost alternative to the PT230SSE is PTLINK
