Rudder/TrimTab-Anode

ANODE RUDDER DISC PAIR - Image 2

Rudder/trimtab-anode

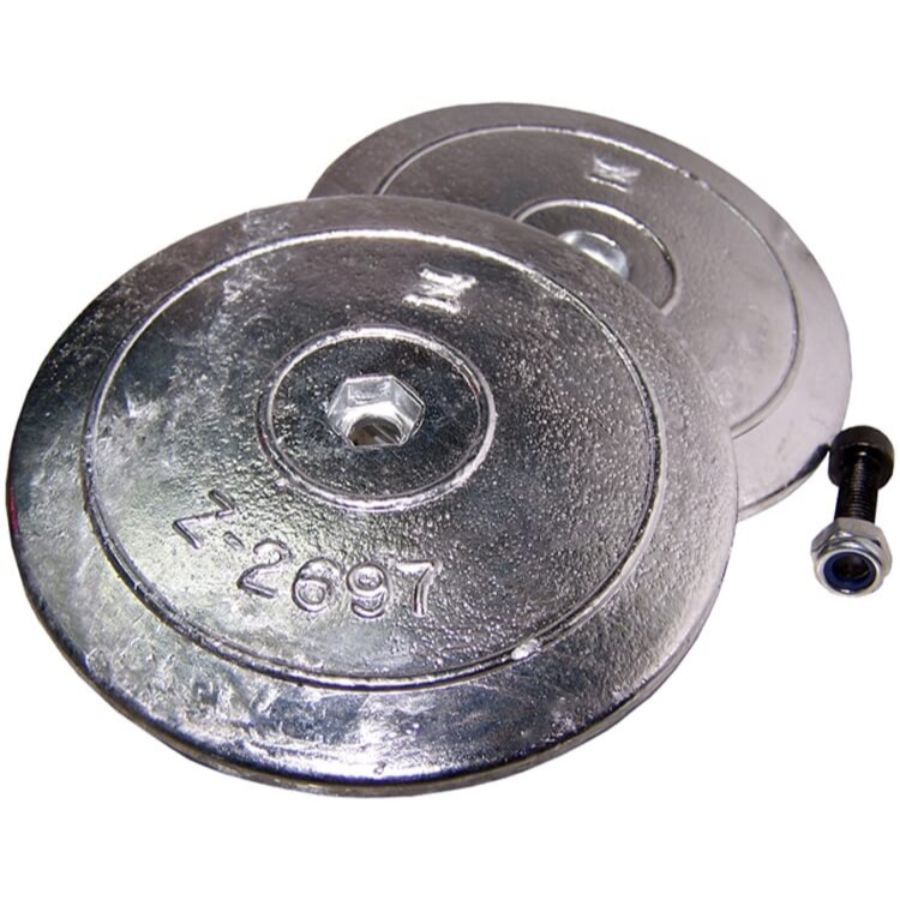

ANODE RUDDER DISC PAIR

REF: 86868

Rudder anodes are sold in pairs, with stainless steel bolt and nut.
Easy installation underwater
Bolt retaining washers prevent the anode from falling off

€6.00 – €26.00

Size

Clear

SKU: N/A Category: Anodes Brand: MARTYR ANODES

Description
Additional information

Description

Zinc sacrificial anodes to be used in saltwater. Each anode is to be placed below the water line on each side of the rudder or trim tab.

Zinc anodes are round shape are sold in pairs for mounting on each side of rudder blades and trim tabs. Available in different sizes.

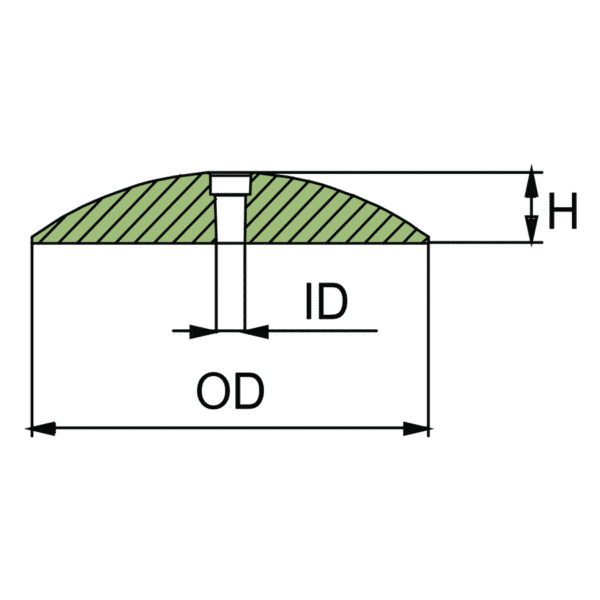

PID		LB	KG		H	OD	ID
				mm	6	47	5

				in	0.35	1.87	0.2
Zn	CMR01	0.293	0.133
				mm	12	71	7

				in	0.5	2.81	0.28
Zn	CMR02	0.939	0.426
				mm	12	95	9

				in	0.5	3.75	0.34
Zn	CMR03	1.602	0.727
			0.612	mm	16	127	9

PID		LB	KG		H	OD	ID
				mm	11	50	7

				in	0.41	2	0.26
Zn	CMF50Z	0.17	0.08
				mm	13	70	9

				in	0.5	2.75	0.35
Zn	CMF70Z	0.399	0.181
				mm	17	90	9

				in	0.66	3.5	0.35
Zn	CMF90Z	0.915	0.415
				mm	19	110	11
Zn	CMF110Z	1.439	0.653
				in	0.75	4.33	0.42

Disc anode - zinc

A = 70 mm	B = 17 mm	C = 8 mm

Disc anode - zinc

A = 90 mm	B = 20 mm	C = 8 mm

Additional information

Size	47mm (130g), 65mm (350g), 70 (300g), 70mm (450g), 71mm (430g), 90mm (600g), 90mm (850g), 95mm (730g), 110mm (1300g), 110mm (1350g), 130mm (1350g)
