Description

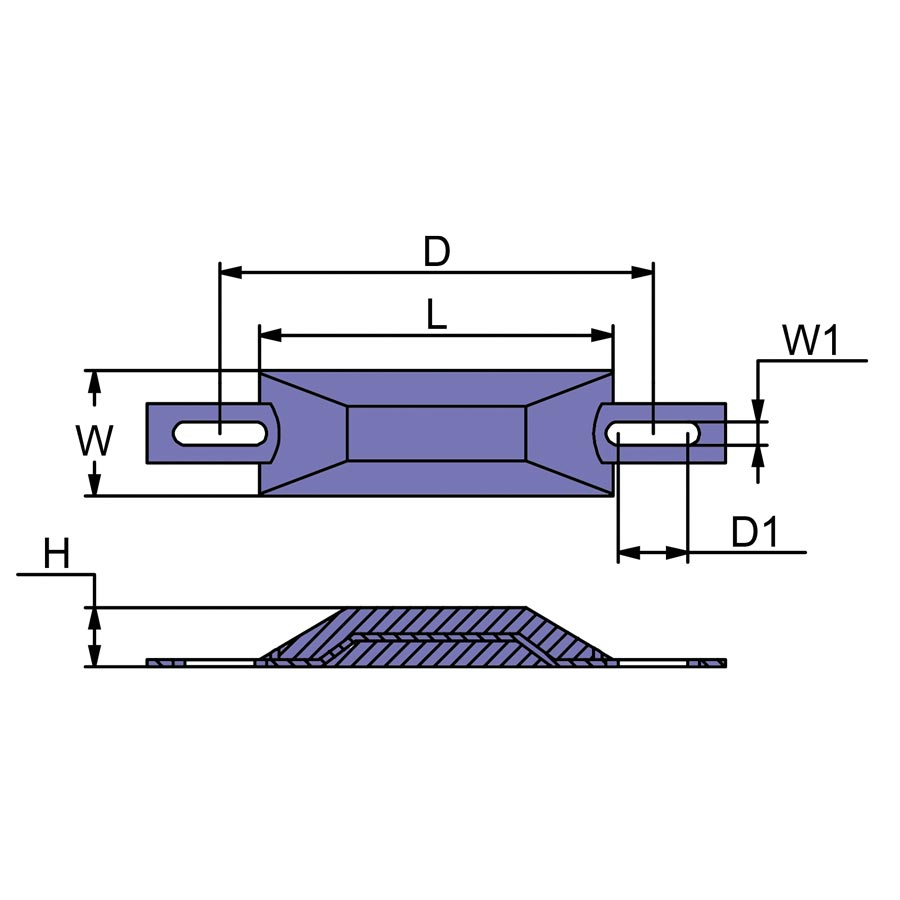

Dimensions:
CM200Z
| PID | LB | KG | L | W | W1 | H | D | D1 | ||
| mm | 96 | 34 | 6 | 16 | 117 | 19 | ||||
| Zn | CM200Z | 0.441 | 0.200 | in | 3.78 | 1.33 | 0.25 | 0.63 | 4.6 | 0.75 |
CM500Z
| PID | LB | KG | L | W | W1 | H | D | D1 | ||
| mm | 116 | 43 | 7 | 24 | 128 | 19 | ||||
| Zn | CM500Z | 1.102 | 0.500 | in | 4.5 | 1.68 | 0.26 | 1 | 5 | 0.75 |
CM1000Z
| PID | LB | KG | L | W | W1 | H | D | D1 | ||
| mm | 118 | 60 | 6 | 30 | 162 | 25 | ||||
| Zn | CM1000Z | 4.850 | 2.20 | in | 4.12 | 2.25 | 0.25 | 1.18 | 6.38 | 1 |
