Description

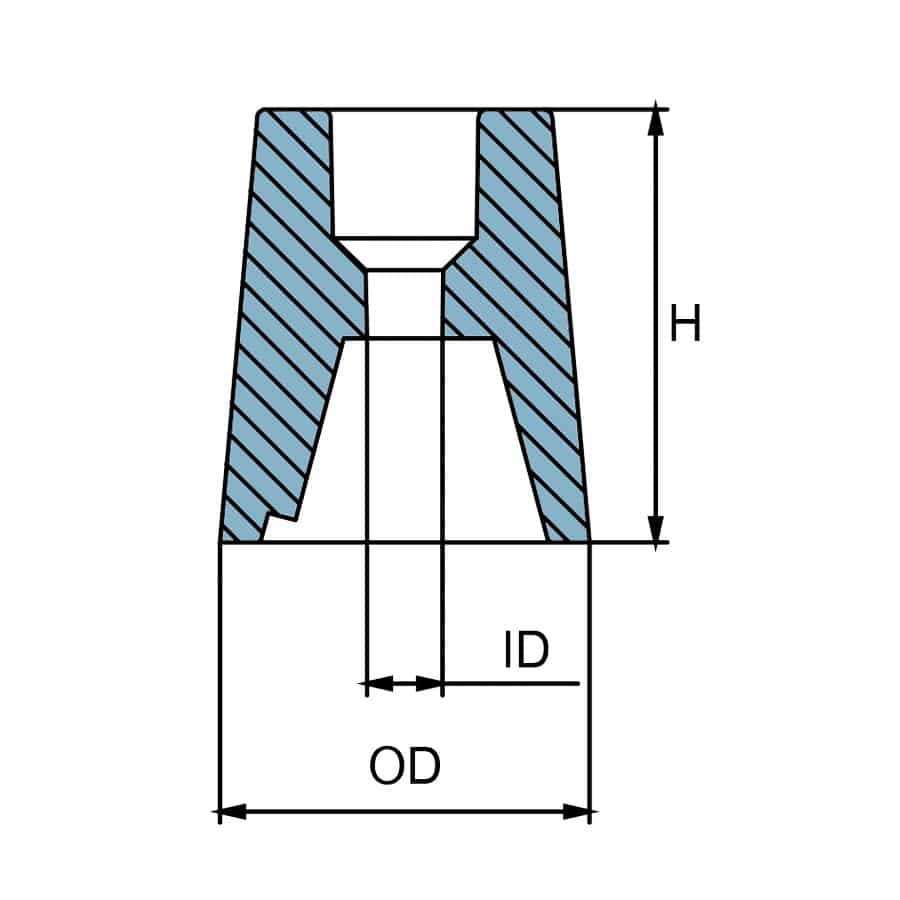

Dimensions
| PID | LB | KG | OD | ID | H | THD | Fastener | |||
| mm | 33 | 7 | 39 | M16
x 1.5 |
M6 x16SS | |||||
| in | 1.28 | 0.27 | 1.54 | |||||||
| Zn | CMLAEC3250EUZ | 0.61 | 0.28 | |||||||
| mm | 44 | 9 | 52 | M20
x 1.5 |
M8 x25SS | |||||
| in | 1.73 | 0.35 | 2.05 | |||||||
| Zn | CMLAEC3300EUZ | 1.31 | 0.59 | |||||||
| mm | 44 | 9 | 52 | M24
x 2 |
M8 x25SS | |||||
| in | 1.73 | 0.35 | 2.05 | |||||||
| Zn | CMLAEC3500EUZ | 1.41 | 0.64 | |||||||
