Description

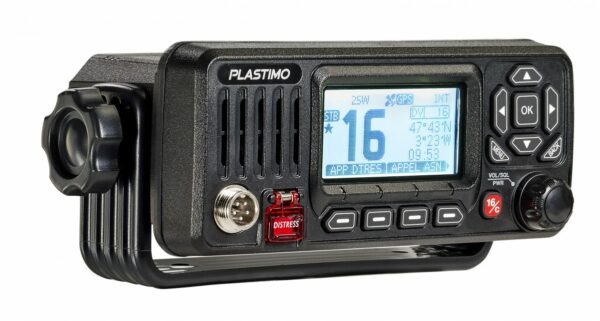

Characteristics of the VHF
• 1 W / 25 W power output.
• GNSS antenna included : GPS & GLONASS.
• DSC function, class D.
• ATIS mode for European inland waters.
• Compact size : 156 x 66 x 99 mm (L x H x D).
• 4 pre-programmed instant access keys on front facia.
• External loudspeaker output.
• Water draining function to evacuate water from the loudspeaker.

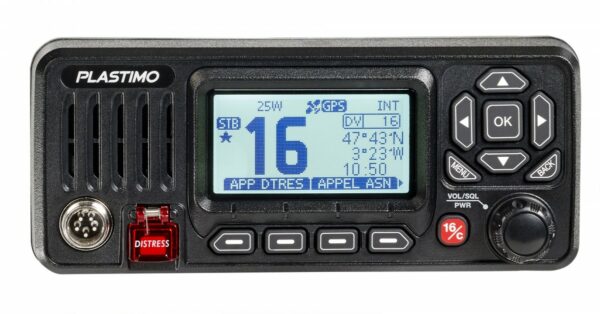

• 55 x 28 mm backlit display.
• GPS function with navigation data : time, LAT/LON, COG and SOG.
• SCAN function of pre-programmed favourite channels.
• Dual and triple watch.
• 3 channel groups : international, USA and Canada.
• Weather alert (USA only).
• Menu in English and French (user’s manual in 8 languages).
• RED certified.
• NMEA 0183 compatible.

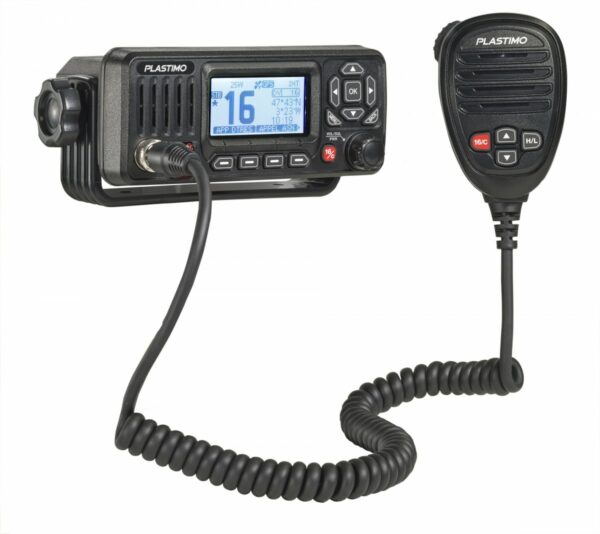

• Weight : 721 g, VHF radio + microphone (bracket, GPS antenna and wallmount kit not included).
(Europe version, USA-Canada compatible)
All fixed VHF radios must be equipped with a satellite position receiver.
Our FX-500 VHF features a GNSS receiver which processes the boat location from the GPS and GLONASS satellites.
Delivered with wire-type GNSS antenna (GPS & GLONASS) including 5 m cable.
Antenna holds either on magnetic surface or with double-sided adhesive tape.
