Description
MORE FEATURES
|
– Both pump & bowl are interchangeable with JABSCO. – All spare parts can be ordered Individually. – Convenient push-button flush. – Easy-to-clean china bowl. – Includes heavy-duty push button and 1″-1/2″ discharge hose adapter. |
– Flexible Impeller Flush Pump. – Permanent Magnet Type Motor, Fully Enclosed, with Stainless Steel Shaft. – Built-in Back Flow Preventer. – All Corrosion Resistant Material for Marine Use. |
STANDARD PUMP CONFIGURATIONS
| Type | Electric |
| Control Type | Switch Panel |
| Max Draw | 20A @12V |
| Size | Compact |
| Diameter | 3/4″ Inlet 1″ Discharge |
| Material | Ceramic bowl, wood seat with baked enamel finish |

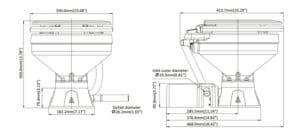

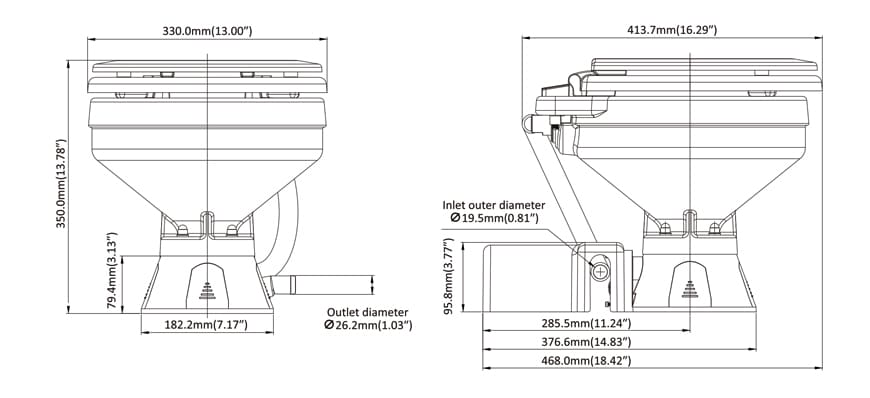

| Dimension(L*W*H) | 490 x 445 x 430 mm
(19.29”*17.52”*16.93” ) |

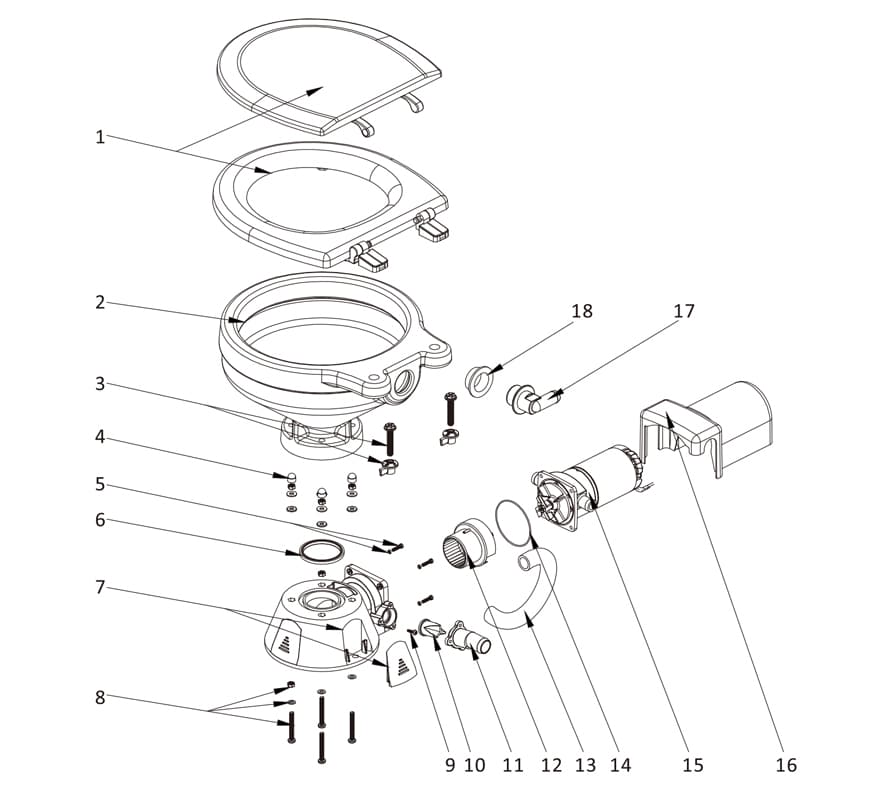

DETAILED COMPOSITION
| Key | Description | Material |
| 1 | Cover assembly | MDF |
| 2 | Ceramic seat | ceramics |
| 3 | Plastic screw assembly | stainless steel |
| 4 | Screw cap | stainless steel |
| 5 | Tooth screw | stainless steel |
| 6 | Seal | NBR |
| 7 | Base | ABS |
| 8 | Bolt assembly | stainless steel |
| 9 | Tapping screw | stainless steel |
| 10 | Sewage rubber parts | NBR |
| 11 | Discharge port | PP |
| 12 | Macerator housing | PPS+glass fiber |
| 13 | Water pipe | PVC |
| 14 | Motor seal | NBR |
| 15 | Motor assembly | |
| 16 | Motor cover | PP |
| 17 | Inlet elbow | PP+glass fiber |
| 18 | Inlet seal | NBR |
