SWITCH BILGE PUMP ELECTRONIC 12/24V SFLO

REF: 183389

  • Fit SEAFLO high quality pumps and accessories to ensure long term reliability throughout your bilge waste system.
  • SEAFLO switches, diverter valves, and pipework connections are designed and manufactured to the highest quality specification.
  • Combine these accessories with your SEAFLO bilge pumps for reliability and durability.

24 in stock

€35.00

SKU: FU1070X20600 Category: Brand:

Description

FEATURES & BENEFITS

– Ideal for use with electric bilge pump
– Rated to handle pumps up to 20A at 12V or 10A at 24V
– No exposed sensors eliminate corrosion possibilities
– No moving parts, totally sealed solid state electronics and field detectors



 – Activates at a 41mm (1.6″) fluid level and deactivates at a 9.5 mm (0.37″) fluid level
– A three second delay prevents false starts from water sloshing in the bilge
– Easy to install, mounted on either horizontal or vertical surface (e.g. bulkhead or hull)

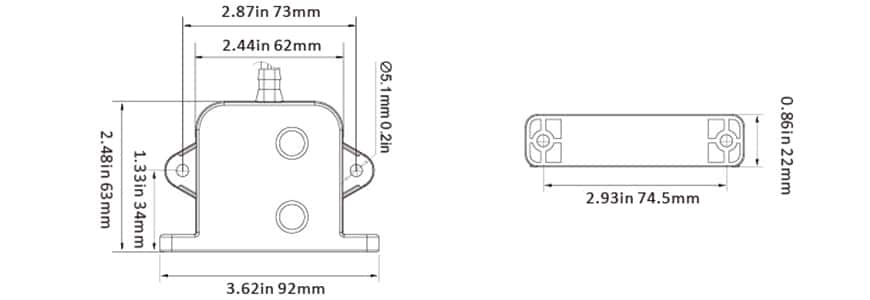

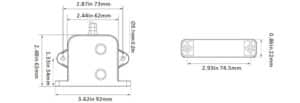

DIMENSIONS

WIRING

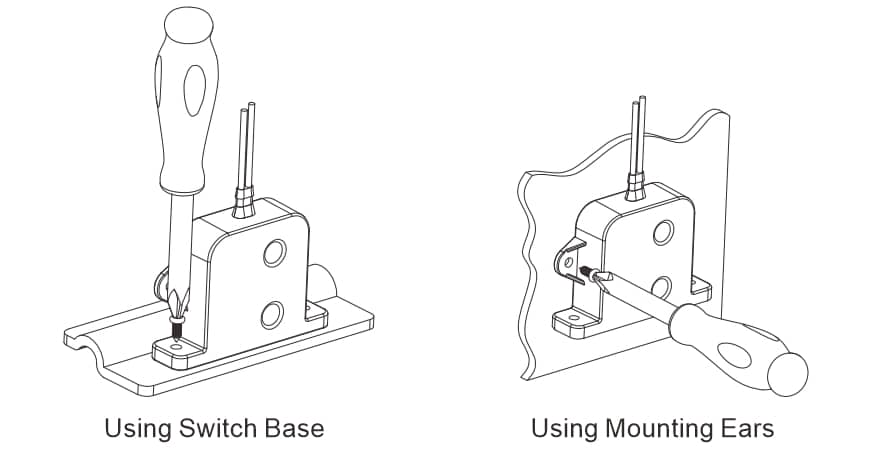

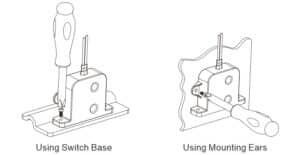

INSTALLATION

TESTING

STANDARD PUMP CONFIGURATIONS

Model Number Voltage Current Wire Gauge Size /length N.W.
SFBS-20-06 12V/24V DC 20A at 12V or 10A at 24V 16AWG/1000mm 0.1KG
