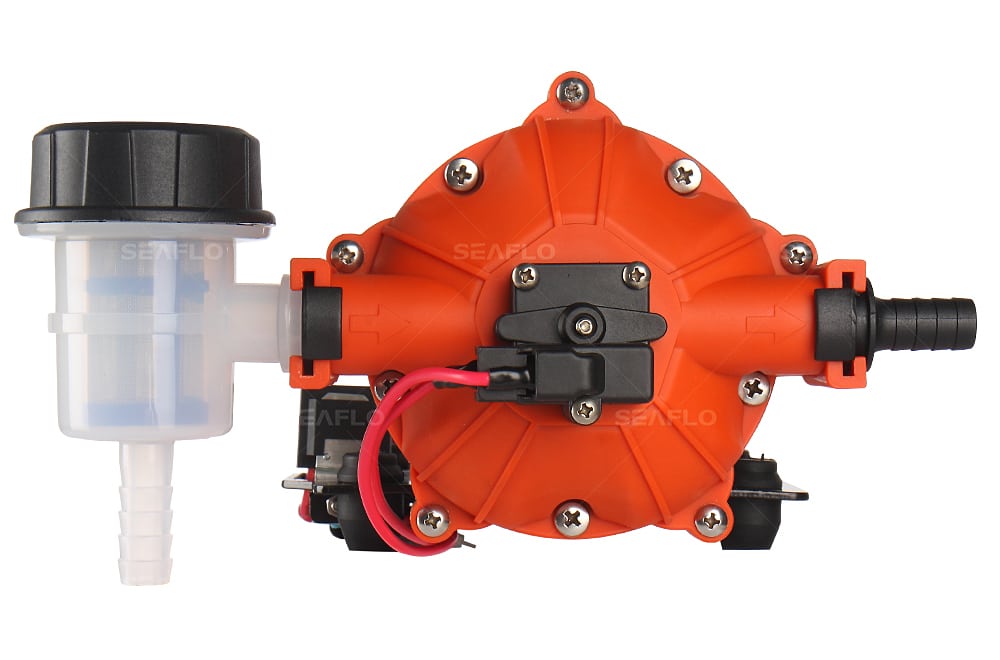

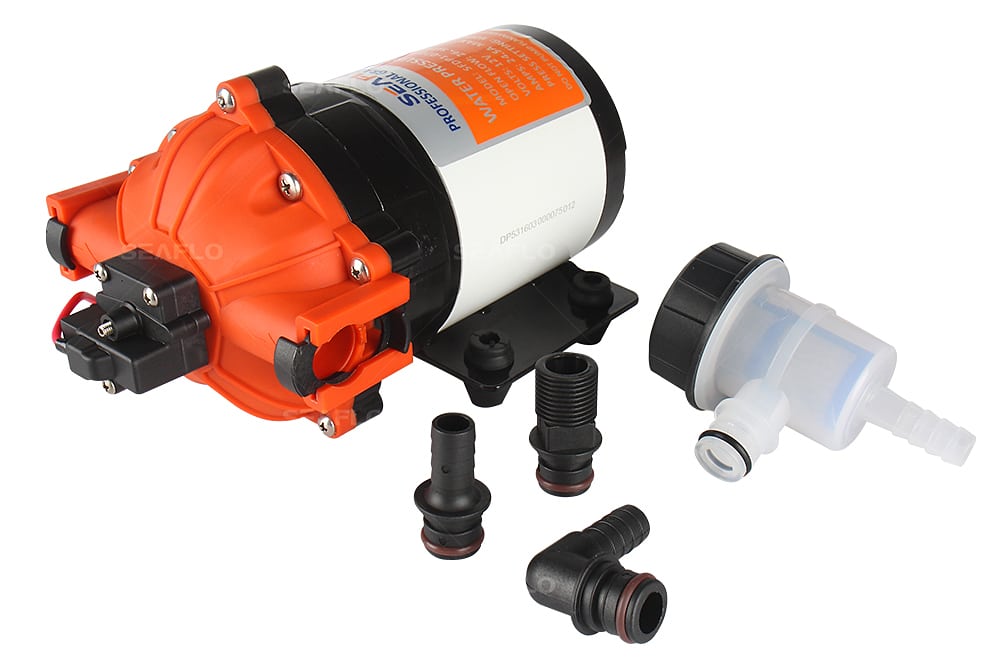

Description
MORE FEATURES & BENEFITS
| -Continuous Duty -Can supply up to 6fixtures -Self priming -Run dry safe -Can be use for Fresh&Salt Water |
-Adjustable pressure switch -16AWG,9＂long Leads -2 Year Warranty – Meets or exceeds RoHS, SGS, and ISO standards |
TYPICAL APPLICATIONS
Marine,RV,Agricutural Spraying,General Industial,Filtration,Beverage Processing,Solar Water System.
| PUMP | |
| Type | 5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Control Type | Pressure switch |
| Max Recommended Temperature | 60° C（140° F） |
| Priming Capabilities | 6 feet (1.8 m) suction lift |
| Re-start Pressure | Shut-off Pressure 60 PSI ：48 PSI ±5 PSI (±0.3 bar) |
| Inlet/Outlet Ports | QUICK ATTACH |
| Weight | 9.8 lbs (4.5 kg) |
| MOTOR | |
| Leads | 12 AWG, 9″ (23 cm) long with 2-Pin connector / Leads |
| Duty Cycle | Continuous |
| Max.Amp Draw | 24.5 A |
| Fuse | 36.8 A |
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow （GPM/LPM） |
Control Type | Max Draw | Shut-off Pressure （PSI/BAR) |
Valves | Diaphragm | Ports | Wire Connections |
| SFDP1-070-060-53 | 12V | 7.0 / 26.5 | Switch | 24.5A | 60 / 4.1 | EPDM | Santoprene | QUICK ATTACH | 2-Pin/Leads |
| SFDP2-070-060-53 | 24V | 7.0 / 26.5 | Switch | 13.0A | 60 / 4.1 | EPDM | Santoprene | QUICK ATTACH | 2-Pin/Leads |
| PERFORMANCE
7.0GPM
|
|||||||||||||||||||||||||||||||||||||||||||||||
View other parameter tables / graphs, Please click here
HEAT RISE

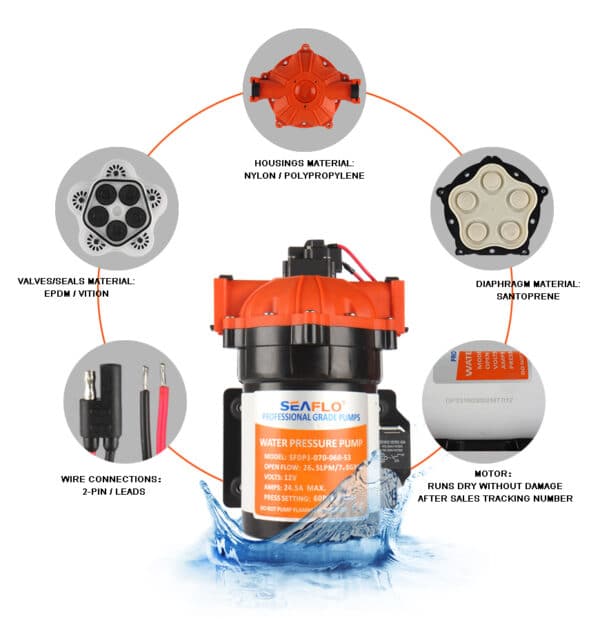

DIMENSIONS
PRODUCT DETAILS
| Key | Description | Quantity |
| A | Pump Head Assembly | 1 |
| B | Valve Assembly | 1 |
| C | Diaphragm Assembly | 1 |
| D | Motor Assembly | 1 |
| 1 | Pressure switch | 1 |
| 2 | Diaphragm of Pressure Switch | 1 |
| 3 | Quick Attach Clip | 2 |
| 4 | Pump Head | 1 |
| 5 | Diaphragm | 1 |
| 6 | Relay | 1 |
| 7 | Rubber Feet | 4 |
| 8 | Iron Baste Plate | 1 |
| 9 | Motor | 1 |
