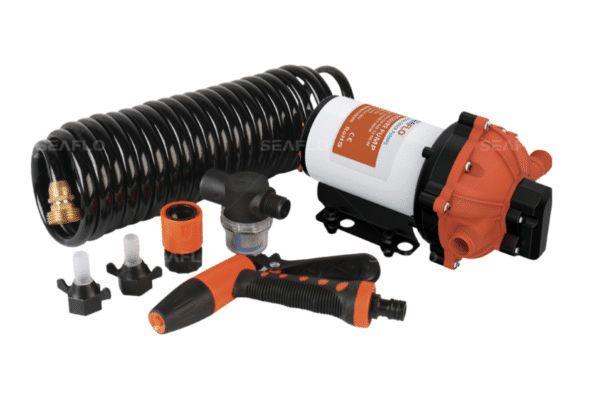

PUMP WASHDOWN KIT 12V/18A 5.0GPM 1/2”

REF: 170312

  • Our heavy-duty washdown kit.
  • The best choice for cleaning boats, fish boxes, anchor wells, dinghies, and other similar applications.
  • This pump boasts a huge 5 GPM capacity.
  • This pump has an on-demand switch, so the pump automatically turns on when you squeeze the spray?gun handle.
  • With 70 PSI cutoff, this has the pressure to get rid of stubborn debris.
  • Suitable for fresh and saltwater applications.

5 in stock

€120.00

SKU: SU9030X05012 Categories: , Brand:

Description

PUMP
Type 5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type Pressure switch
Max Recommended Temperature 60° C（140° F）
Priming Capabilities 6 feet (1.8 m) suction lift
Re-start Pressure Shut-off Pressure 70 PSI ：56 PSI ±5 PSI(±0.3 bar)
Inlet/Outlet Ports 1/2″-14 MNPT
Weight 8.2 lbs (3.7 kg)
MOTOR
Leads 14 AWG, 13″ (33 cm) long with 2-Pin connector/Leads
Duty Cycle Continuous
Max.Amp Draw 18.0 A
Fuse 27.0 A



STANDARD PUMP CONFIGURATIONS:

Model Voltage Open Flow
（GPM/LPM）		 Control Type Max Draw Shut-off Pressure
（PSI/BAR)		 Valves Diaphragm Ports Wire Connections
SFWP1-050-070-51NEW 12V 5.0 / 18.9 switch 17.0A 70 / 4.8 EPDM Santoprene 1/2″-14 MNPT 2-Pin/Leads
SFWP2-050-070-51NEW 24V 5.0 / 18.9 switch 9.0A 70 / 4.8 EPDM Santoprene 1/2″-14 MNPT 2-Pin/Leads



PERFORMANCE:

5.0GPM

PRESSURE FLOW CURRENT
PSI BAR GPM LPM AMPS
0 0 4.91 18.60 6
20 1.38 3.75 14.20 9.8
30 2.07 3.43 13.00 11.17
40 2.72 3.12 11.80 12.4
50 3.45 2.85 10.80 13.5
60 4.14 0 0 14.5
