Description

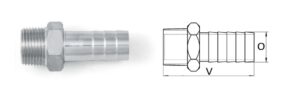

| Size | DN/1D | O (mm) | V (mm) |
| 1/4” | 8 | 9 | 40 |
| 3/8” | 10 | 11 | 40 |
| 1/2″ | 15 | 13 | 47.5 |
| 3/4” | 20 | 20 | 50.5 |
| 1” | 25 | 25 | 61 |
| 1.1/4” | 32 | 32 | 63.5 |
| 1.1/2” | 40 | 40 | 75 |
| 2” | 50 | 50 | 79 |
NIPPLE M/M HEXAGON S/S A4
REF: 86618
- Thread: according to EN 10226-1 (EX ISO 7-1)
(conical male thread, cylindric female thread) - Taper 1:16 on diameter
- Angle of threads 55°
- Maximum operating pressure 10,34 Bar PN 10
Price range: €1.20 through €10.00
Additional information
| Size | 1/4", 3/8", 1/2", 3/4", 1", 1.1/4", 1.1/2", 2", 1/8" |
|---|
