Description

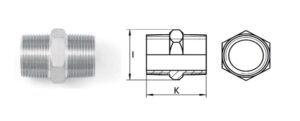

| Size | DN/1D | I (mm) | H (mm) |
| 1/8” | 6 | 12 | 29.5 |
| 1/4” | 8 | 14 | 26 |
| 3/8” | 10 | 18 | 28 |
| 1/2″ | 15 | 22 | 33.5 |
| 3/4” | 20 | 28 | 38 |
| 1” | 25 | 35 | 41.5 |
| 1.1/4” | 32 | 44 | 47.5 |
| 1.1/2” | 40 | 50 | 47.5 |
NIPPLE HEXAGON REDUCE S/S A4
REF: 86639
Thread: according to EN 10226-1 (EX ISO 7-1)
(conical male thread, cylindric female thread)
Taper 1:16 on diameter
Angle of threads 55°
Maximum operating pressure Bar PN 10
€1.85 – €12.00
Additional information
| Size | 1/4-1/8", 3/8-1/4", 1/2-3/8", 3/4-3/8", 3/4-1/2", 1-3/4", 1.1/4-1", 1.1/2-1.1/4", 2-1.1/2" |
|---|
