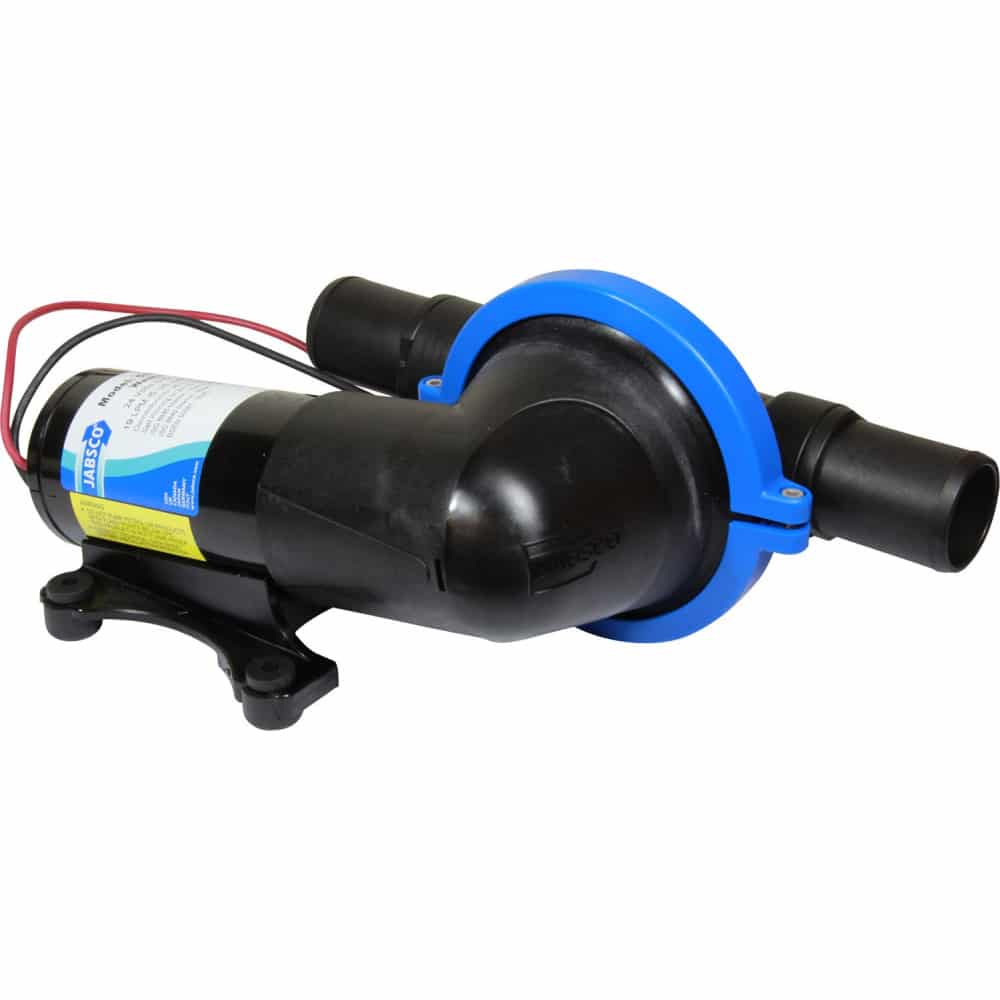

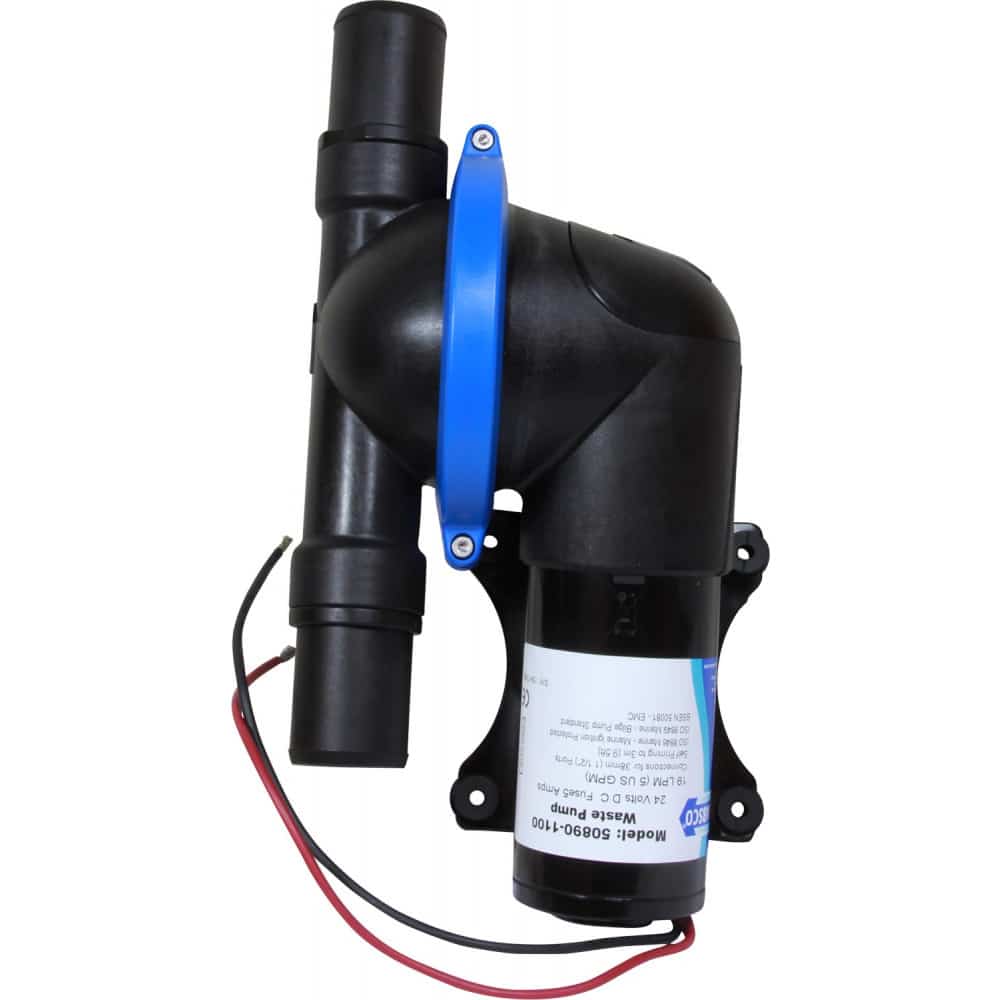

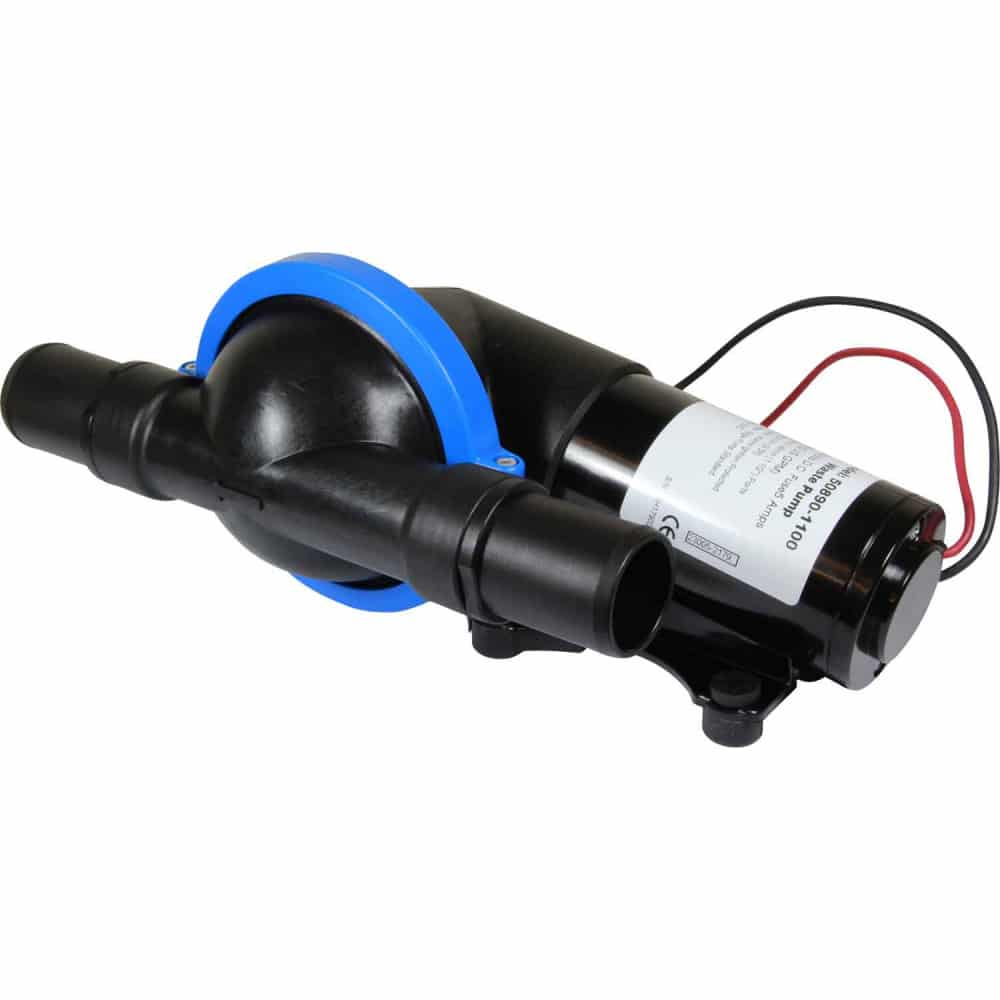

JABSCO DIAPHRAM WASTE PUMP 50890 24V

REF: 45667

The robust, single diaphragm design, featuring integrated joker valves, make this pump ideal for sink, shower and waste water transfer/pumping. The design also features multi-positional 38mm (1.5″) ID ports for good “solids” handling ability.

The single diaphragm design allows extended dry running, and can self prime up to 3m vertical lift. This Jabsco waste pump does not require a filter. These pumps are extremely quiet, and rated for up to 30 minutes continuous running.

Description

DESCRIPTION

12V:

Robust diaphragm pump allowing the passage of black water, emptying of retention tanks.

Multi-position pump head allowing a wide variety of installation options
Flow rate 19 L/min
Self-priming up to 3m
Quiet operation
Easy installation
Corrosion resistant parts
Meets USCG 183.410 and ISO 8846 MARINE (ignition protection) standards
ISO 8849 MARINE (bilge pump standard)
1-1/2″ (38 mm) Hose Fittings
L x W x H: 27.7 cm x 15.5 cm x 11.1 cm
Weight 2.7 kg

24V:

Self-priming 50890 series diaphragm pump, delivery up to 3m, flow rate 19 L/min.

Head can be adjusted to any position

TECHNICAL CHARACTERISTICS

12V	24V
Dimensions: 294 x 159 x 132 mm	Dimensions: 278 x 161 x 132 mm
Consumption: 8 A	Consumption: 2.5 A
Speed: 7 L/min	Speed : 4 L/min
Maximum flow rate: 19 L/min	Maximum flow rate: 19 L/min
Diameter: 38 mm	Diameter: 38 mm
Inner diameter: 25
Height: 132 mm	Height: 132 mm
Intensity: 10 A	Intensity: 5 A
Width: 161 mm	Width: 161 mm
Length: 278 mm	Length: 278 mm
Model: 50890	Model: 50890
Type of pumps: electric pump	Type of pumps: electric pump
Weight: 2.7 kg	Weight: 2.7 kg
Maximum suction height: 3 m	Maximum suction height: 3 m
Tension: 12 V	Tension: 24 V

LOGISTICS DATA

12V	24V
Item Weight (Kg): 3.3	Item Weight (Kg): 3.3
Item length in cm: 15	Item length in cm: 15
Item height in cm: 35.5	Item height in cm: 35.5
Large item: No	Large item: No
Dangerous item: No	Dangerous item: No
Item depth in cm: 19.5	Item depth in cm: 19.5
