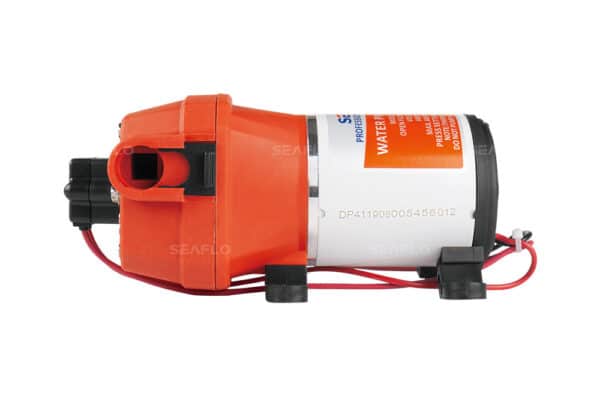

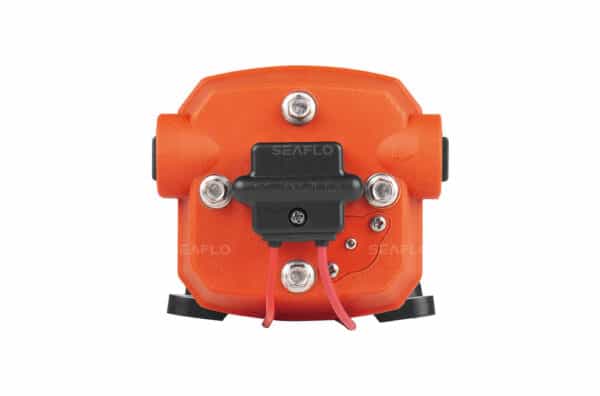

SEAFLO WATER PUMP 12.5L/MIN 3.3GPM 12V

REF: 30372



  • Provides high volume water flow with reduced pump cycling, thanks to the quad chamber diaphragm and internal bypass.
  • Designed to run on water systems with no accumulator tank necessary, and up to five outlets. It is also suited for use with a holding tank water system, as may be found in a boat, RV or remote cabin. It provides up to 3.3 gallons per minute, suitable in a system of up to five fixtures.
  • It’s self-priming, and can run dry without damage, performance reliable and low current. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.
  • They’re easy to install, service and winterize with quick snap-in port fittings.

Voltage：12V

Open Flow：2.7-3.3GPM / 10.0-12.5LPM

Shut-off Pressure：17-35PSI / 1.2-2.4BAR

Priming Capabilities：6 feet (1.8 m) suction lift

Max Recommended Temperature：140° F (60° C）Max.

Material：EPDM(Valves) / Santoprene(Diaphragm)

Ports：QUICK ATTACH

2 in stock

€80.00

SKU: OS0016X51212 Category: Brand:

Description

FEATURES & BENEFITS

– Can supply up to 3 fixtures

– Quick connect fitting

– Can be used for Fresh & Salt Water

– On-demand pressure switch & adjustable pressure setting

 – Can run dry- Self priming

– Quiet operation

– Ignition protected



PUMP
Type 4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type Pressure switch & By pass control
Max Recommended Temperature 60° C（140° F）
Priming Capabilities 6 feet (1.8 m) suction lift
Re-start Pressure Shut-off Pressure 17 PSI ：9 PSI ± 5 PSI(± 0.3 bar)

Shut-off Pressure 35 PSI ：25 PSI ± 5 PSI(± 0.3 bar)
Inlet/Outlet Ports QUICK ATTACH
Weight 3.9 lbs (1.8 kg)



MOTOR
Leads 16 AWG, 11″ (28 cm) long with 2-Pin connector / Leads
Duty Cycle Intermittent
Max.Amp Draw 8.0 A
Fuse 12.0 A

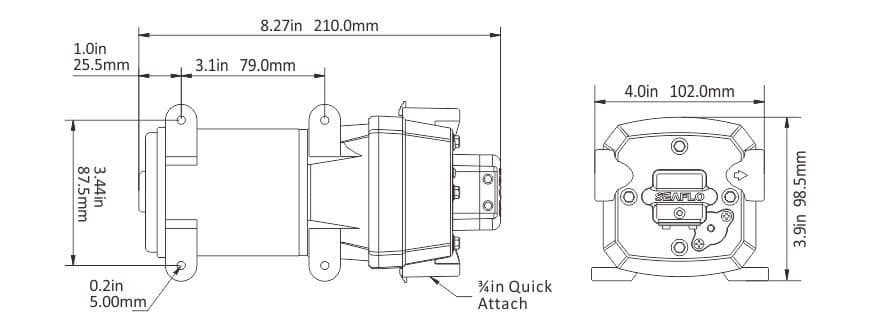

DIMENSIONS
