Description

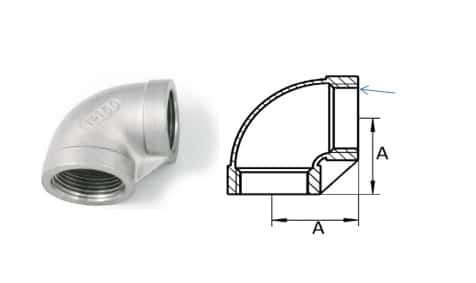

| Size | DN/1D | A (mm) |
| 1/8” | 6 | 14 |
| 1/4” | 8 | 18.5 |
| 3/8” | 10 | 20.8 |
| 1/2″ | 15 | 25 |
| 3/4” | 20 | 27.5 |
| 1” | 25 | 33 |
| 1.1/4” | 32 | 39.5 |
| 1.1/2” | 40 | 43 |
| 2” | 50 | 52 |

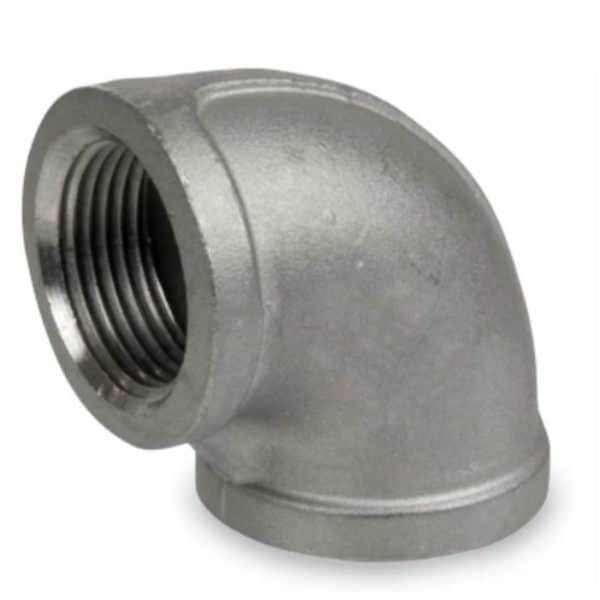

ELBOW F/F 90-DEG STAINLESS STEEL A4
REF: 86598
- Thread: according to EN 10226-1 (EX ISO 7-1)
- Conical male thread, cylindric female thread
- Taper: 1:16 on diameter
- Angle of threads: 55°
- Maximum operating pressure: 10,34 Bar PN 10
Price range: €2.25 through €12.00
Additional information
| Size | 1/4", 3/8", 1/2", 3/4", 1", 1.1/4", 1.1/2", 2" |
|---|
