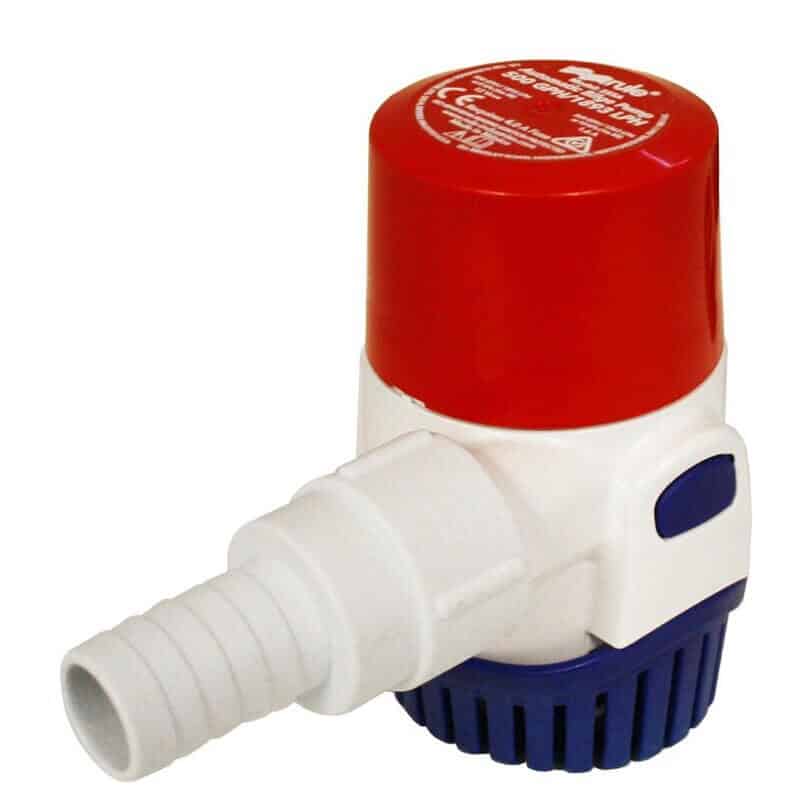

BILGE PUMP RULE 500(25SA) AUTO 12V 31L/M

REF: 194634

Rule automatic submersible bilge pump with a flow rate of up to 2,165 litres / hour (572 gallons / hour), 12V

360-1100 GPH Bilge Pump INSTRUCTION MANUAL







6 in stock

119.00

SKU: VD0600X50112 Category: Brand:

Description

  • Electronically controlled submersible bilge pumps from the Rule automatic bilge pump series
  • Checks for water every 2 ½ minutes (runs for 1/2 second); power consumption in test mode approx. 0.20 amps per day
  • Nominal output with open flow 2,165 l/h (575 GPH), at 2m head (without non-return valve) 1,022 l/h (270 GPH)
  • Screwed outlet simplifies installation and maintenance
  • Non-return valve in the outlet to protect against backflow
  • No separate float switch required, third wire for manual switch-on
  • The strainer is not interchangeable with the old series, but can be attached to the existing screw holes
  • Connection: 19mm (3/4″) hose connection (inner diameter) or 19mm (3/4″) NPSM
  • Power consumption max 1.6A (13.6V); fuse 4A
  • Dimensions: Height 10.7 cm / width 7.4 cm / depth 6.4 cm (without outlet); cable length approx. 75 cm
  • Alternative to Rule 25S
