SEAFLO BILGE PUMP 12V 296L/MIN 4700GPH 17A

REF: 45295

  • New innovative split quick-connect joint design removes and installs in seconds! No need to disconnect base or plumbing when replacing pump, which can meet the needs of most use.
  • Threaded Discharge — easier installation, easier maintenance.
  • Include removable discharge straight and choice angle fittings to suit your installation. Threaded discharge nozzle.
  •  Hidden Air Vents in the Body – helps prevent air locking in challenging plumbing installations and helps with the check valve.
  • Backflow Prevention – The non-return check valve prevents water left in the discharge from running back, reducing odor, and keeping bilges dryer and cleaner.
  • Split quick-connect joint design no need to disconnect base or plumbing when replacing pump.

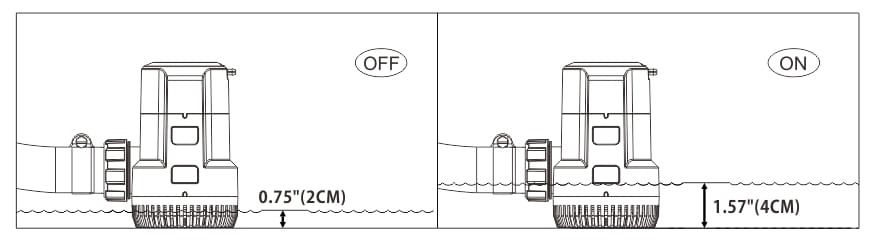

  • Pump starts when water reaches 4cm/1.57” level, and stops when water level down to 2cm/0.75” for 15 seconds.

5 in stock

€79.90

SKU: OS0016X12247 Category: Brand:

Description

FEATURES & BENEFITS

– CE, RoHS, ISO 8846, ISO 8849 standards
– Traditional operation by switch or float switch
– Entirely Submersible
– Run dry capable for workloads
– Quiet operation
– Stainless steel shaft		 – Snap-off strainer base for easy maintenance
– Pump and switch are stand alone products
– Sealed efficient, long life motors
– Anti-Airlock protection
– Exclusive moisture tight seals
– Marine grade blocked wiring









STANDARD PUMP CONFIGURATIONS

Flow rate Volts Current Head Wire Lead Outlet Dia. N.W./G.W.
4700GPH 24V 17A 6.5m/21.33′ 3′ (1 m) 1.5″ (40mm)

2″(52mm)

 2.1/2.2kg



INSTALLATION

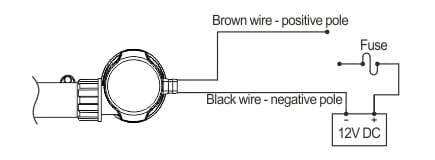

DIAGRAMS

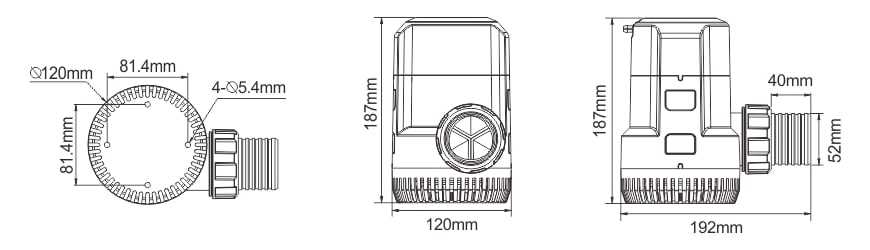

DIMENSIONS

COMPOSITION
