Description

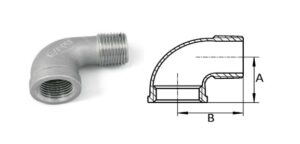

| Size | DN/1D | A (mm) | B (mm) |
| 1/4” | 8 | 17.6 | 27 |
| 3/8” | 10 | 20.5 | 30 |
| 1/2″ | 15 | 20.5 | 30 |
| 3/4” | 20 | 24 | 34.5 |
| 1” | 25 | 30 | 39.5 |
| 1.1/4” | 32 | 35.5 | 46.5 |
| 1.1/2” | 40 | 38.5 | 49.5 |
| 2” | 50 | 48 | 60.5 |

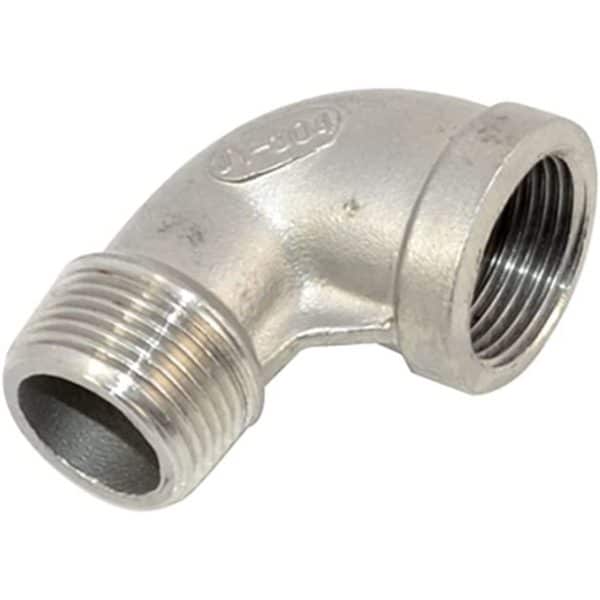

ELBOW M/F 90-DEG S/S A4
REF: 86617
Thread: according to EN 10226-1 (EX ISO 7-1)
(conical male thread, cylindric female thread)
Taper 1:16 on diameter
Angle of threads 55°
Maximum operating pressure 10,34 Bar PN 10
Price range: €1.75 through €26.00
Additional information
| Size | 1/4", 3/8", 1/2", 3/4", 1", 1.1/4", 1.1/2", 2" |
|---|
