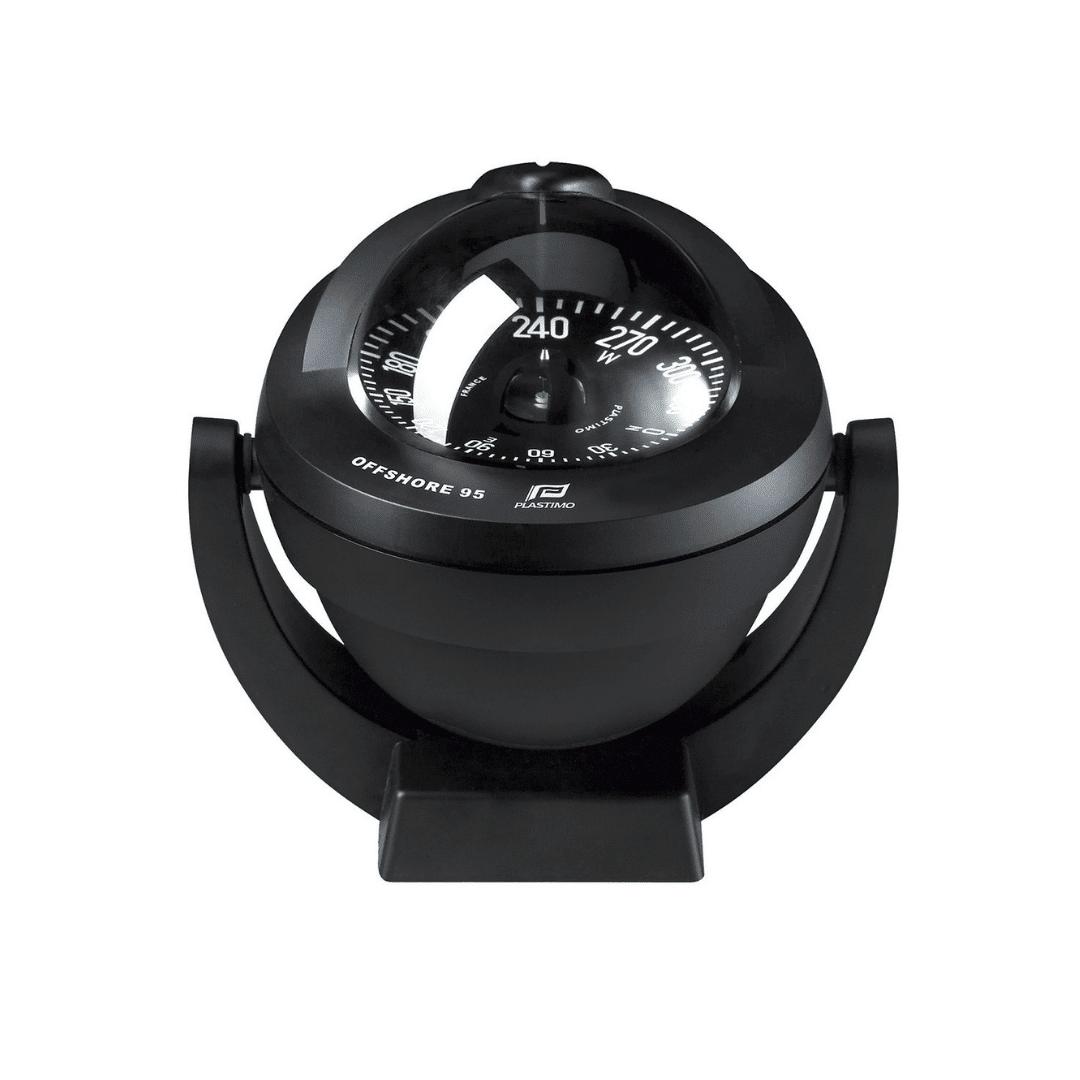

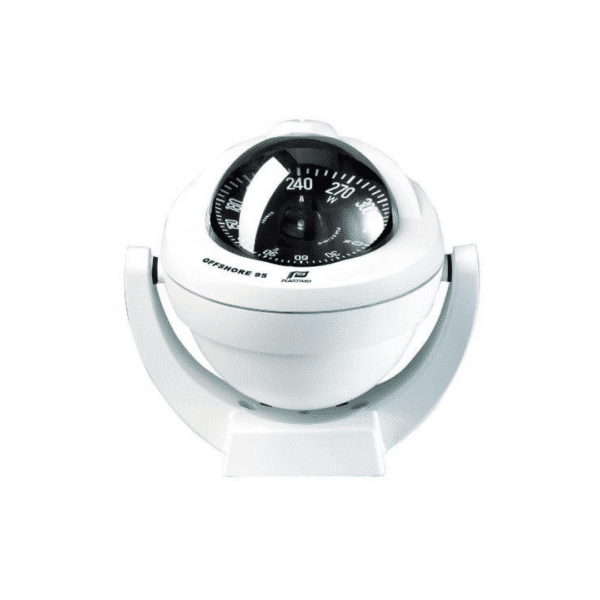

COMPASS OFFSHORE 95 BRAKET FLAT

REF: 35265

Powerboats 6 to 10 m (19 to 33 ft).

Installation
• Flushmount on horizontal dashboard : compact design, interchangeable with Offshore 90 and most compasses of equivalent size.
• Bracket : broad and sturdy bracket base absorbs vibrations. Mounting can be done whatever the angle, provided that the compass and card unit remain horizontal at all times. Bracket-mount compass can also be removed when fitted with clip-plate.

109.00125.00

SKU: N/A Category: Brand:

Description

Card
Outstanding legibility under all weather and light conditions for optimum comfort and accurate readings.
• Perfect stability of conical or flat card, 81 mm apparent diameter.
• Graduation every 5°.

Materials
• All parts fully UV-ray treated.
• Scratch resistant dome.

Boat size Powerboats of 6 to 10 m (19-33 ft).
Compass card Conical or flat card graduated every 5°, apparent Ø 81 mm.
Heading numerals every 30°
Mounting
  • Flushmount, on horizontal surface or dashboard.
  • With a bracket : mounted on a horizontal or inclined dashboard. Compass is removable thanks to clip-plate.
Resistance to vibrations and hull pounding Magnetic cell equipped with the unique “Vibration Absorber” system.
Lubber line 1 lubber line, red for instant recognition.
Compensation Supplied as standard
Lighting 12-24 V LED, included.
Supplied with Clip-plate, screws, drilling template.
Approval/homologation ISO 613 compliant

Additional information

Color

White/Black, Black/Black
