Description
The version for inclined partition is designed for an inclination between 10° and 25°.
The rose retains all its efficiency and maximum pitch travel without the risk of jamming.
The Contest 130 on stirrup is more particularly intended for boats with a wheelhouse. The removable bracket allows the compass to be fixed in all positions.
|

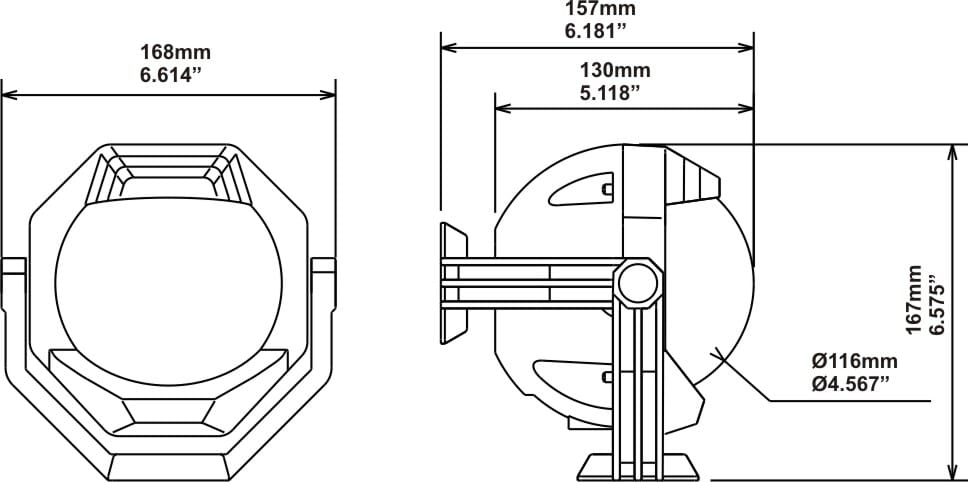

CONTEST 130
|
|
| boat size | Sailboat from 9 meters |
| Rose | Double scale: horizontal and vertical. Conical rose graduated every 5°, apparent Ø 127 mm. Reminder of headings every 30°. |
| Assembly | • Partition (vertical or inclined from 10° to 25°). • On stirrup. |
| Alidades | 3 alidades, at 45° |
| Gitometer | Heel reminder every 10° |
| Compensation | Series |
| Lighting | 12-24V LEDs. |
| Delivered with | Protective cover, drilling template. |
| Approval | SOLAS-MED 96/98 |
