Description

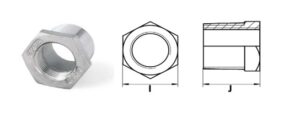

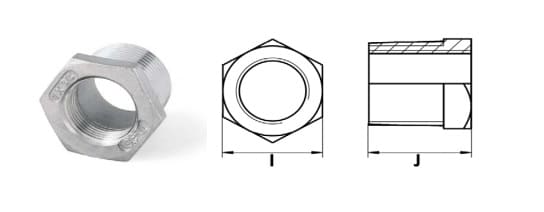

| Male | Female | DN/1D | I (mm) | J (mm) |
| 1/4” | 1/8” | 8-6 | 14.5 | 14.5 |
| 3/8” | 1/4” | 10-8 | 18 | 16 |
| 1/2” | 3/8” | 15-10 | 21.4 | 19.5 |
| 3/4″ | 1/2″ | 20-15 | 27 | 21 |
| 1” | 3/4” | 25-20 | 33.9 | 24 |
| 1.1/4” | 1” | 32-25 | 42.7 | 27 |
| 1.1/2” | 1.1/4” | 40-32 | 48.6 | 27 |
| 2” | 1.1/2” | 50-40 | 60.5 | 31 |

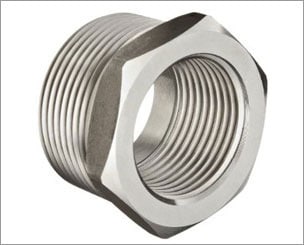

REDUCER M/F HEXAGON S/S A4
REF: 86597
Thread: according to EN 10226-1 (EX ISO 7-1)
(conical male thread, cylindric female thread)
Taper 1:16 on diameter
Angle of threads 55°
Maximum operating pressure 10,34 Bar PN 10
Price range: €1.80 through €16.50
Additional information
| Size | 1/4"-1/8", 3/8"-1/4", 1/2"-3/8", 3/4"-1/2", 1"-3/4", 1.1/4"-1", 1.1/2"-1.1/4", 2"-1.1/2" |
|---|
