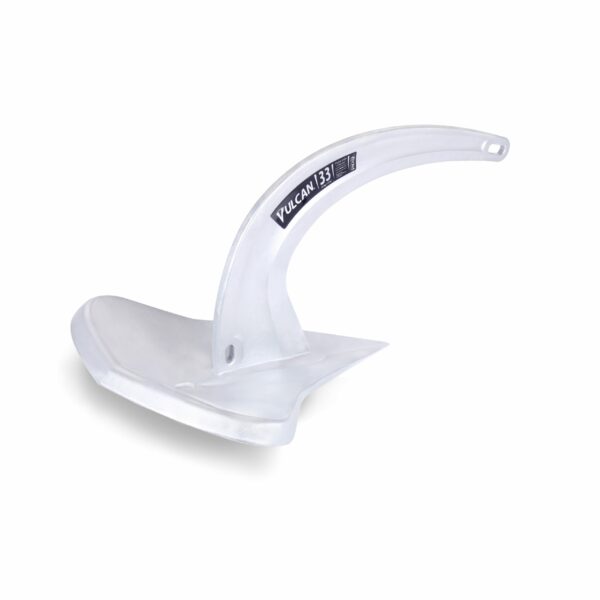

ANCHOR VULCAN GALVANISED 33KG

ANCHOR VULCAN GALVANISED 33KG

REF: 184191

The Vulcan Anchor is Rocna’s new evolution super high holding power anchor. The latest from the Rocna range of anchors, unrivalled performance and peace of mind for the skipper when at anchor in even the fiercest of storms.

Carefully designed to offer the greatest possible compatibility across a wider range of vessel bow configurations. Choose the Vulcan® for a snug fit on the bow of any boat, including those with platforms and bowsprits, for vessels from small runabouts to large yachts and powerboats.

Unique shank and fluke geometry combine with an innovative roll-palm™ to self-right the anchor on the seabed
The V-bulb™ extends fluke ballast downward to gain maximum leverage and efficiency
A larger fluke surface area and higher weight-on-tip than competing designs directly equate to more holding power and security
The omission of a roll-bar, along with a carefully designed shank profile, ensures compatibility on bow rollers
These anchors self-deploy from the majority of bow rollers, ensuring ease of use
High-tensile steel and a unique I+V profile™ shank design provide resistance to bending

2 in stock

€1,440.00

SKU: SE0001G00033 Category: Anchors Brand: ROCNA

Description

Description

Vulcan: An inheritance of genuine performance

The Vulcan capitalizes on finely tuned design elements from the Rocna pattern, infusing proven Rocna performance advantages for an extremely quick and reliable set across a range of seabeds combined with the expected Rocna holding power.

NEW SOLUTIONS FOR OLD CHALLENGES: Breaking from the Rocna design, the Vulcan features a unique and patented shank and fluke geometry – including the innovative roll-palm™ (A) at the rear of the fluke – which self-rights the anchor on the seabed without the use of a roll-bar. This is assisted by the V-bulb™ (B) which extends fluke ballast downward to gain maximum leverage and efficiency. This development permits a larger fluke surface area than competing designs which rely on simple dead weight, while the concave fluke (C) is similar in design to the Rocna.
FIT FOR ALL VESSELS – AND THEIR OPERATORS: No roll-bar and a carefully designed shank profile (D) ensures a snug fit on the bows of a widely expanded range of vessels. Platforms, bowsprits, prods, stays, and other protrusions are cleared with less inconvenience.
SMOOTH BOW INTERACTION & COMPATIBILITY:The Vulcan’s shank shape (E) encourages self-launching and self-stowing upon retrieval on the majority of bow rollers, with a liquid smooth action, ensuring ease of use for all operators.
STRENGTH FROM SOPHISTICATED DESIGN: Working with high tensile steel, the Vulcan shank (E) is further strengthened by our patented I+V profile™ design. This computer optimized I-beam geometry brings higher resistance to bending, and further improves setting performance as the lower V-edge cuts into the seabed. This helps the anchor penetrate more easily to a deep and secure burial

IN THE IMAGE OF THE GODS: Embodying the rugged strength and elegant designs of its namesake – the ancient god of fire and metal smithery – the Vulcan shares the heritage of the Rocna anchor and is born of innovation.

TANDEM ANCHORING ATTACHMENT POINT: For extreme adventurers to extend their horizons even further.

SOLID STEEL: One-piece design for crew safety, ease of use, and simplicity of maintenance.

FINISH OPTIONS: Hot-dip galvanized coating for economical durability, or mirror-polished stainless steel for ultimate aesthetics and extended service life.

Rocna Original/Vulcan Sizing

Vulcan Dimensions

Vulcan dimensions drawing

Vulcan Dimensions


SIZE		A		B		C		D		E		S		Width
kg	lb	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in
4	9	472	18.6	288	11.3	145	5.7	46	1.8	119	4.7	67	2.6	258	10.2
6	13	541	21.3	329	13.0	167	6.6	53	2.1	136	5.4	77	3.0	296	11.6
9	20	619	24.4	377	14.8	191	7.5	61	2.4	156	6.1	88	3.5	339	13.3
12	27	681	26.8	415	16.3	210	8.3	67	2.6	172	6.8	97	3.8	373	14.7
15	33	734	28.9	447	17.6	226	8.9	72	2.8	185	7.3	104	4.1	402	15.8
20	44	808	31.8	492	19.4	249	9.8	79	3.1	204	8.0	115	4.5	442	17.4
25	55	870	34.3	530	20.9	268	10.6	85	3.4	220	8.6	124	4.9	476	18.7
33	73	955	37.6	581	22.9	294	11.6	93	3.7	241	9.5	136	5.3	522	20.6
40	88	1018	40.1	620	24.4	313	12.3	100	3.9	257	10.1	145	5.7	557	21.9
55	121	1132	44.6	689	27.1	349	13.7	111	4.4	286	11.2	161	6.3	619	24.4

Vulcan Shank Hole Dimensions

PID	L, mm	W, mm	T, mm
VLC4GS, VLC4SS	26.4	9.2	8.9
VLC6GS, VLC6SS	30.3	10.6	10.2
VLC9GS, VLC9SS	34.6	12.2	11.7
VLC12GS, VLC12SS	38.1	13.4	12.9
VLC15GS, VLC15SS	41.1	14.4	13.9
VLC20GS, VLC20SS	45.2	15.8	15.3
VLC25GS, VLC25SS	48.7	17	16.4
VLC33GS, VLC33SS	53.4	18.8	18
VLC40GS, VLC40SS	56.9	20	19.2
VLC55GS, VLC55SS	63.3	22.2	21.4

Shank Hole Rocna Anchors
