Description

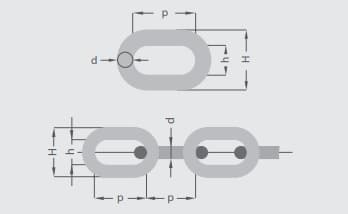

| Diameter | Pitch | Width | Weight per meter | Working load | Breaking load | |||
| mm | mm | mm | Kg/mt | kN | kN | |||
| 2 | 0,10 | 12,0 | 0,60 | 3,50 | 8,40 | 0,070 | 0,50 | 1,25 |
| 3 | 0.20 | 16.0 | 0.80 | 5.4 | 12.60 | 0.165 | 1.12 | 2.80 |
| 4 | 0.20 | 19.0 | 2.00 | 7.0 | 16.80 | 0.300 | 2.00 | 5.00 |
| 5 | 0.30 | 21.0 | 2.00 | 9.0 | 21.00 | 0.500 | 3.15 | 7.75 |
| 6 | 0.30 | 24.0 | 1.20 | 10.8 | 25.20 | 0.730 | 4.50 | 11.50 |
| 8 | 0,40 | 32,0 | 1,60 | 14,0 | 33,60 | 1,300 | 8,00 | 20,00 |
