DAN-FENDER

There are three important factors when talking of quality in connection with fenders and buoys, namely the rope attachment (the eye), the valve and the “body” of the fender.

Consequently, for its Heavy-Duty products, DAN-FENDER has chosen to have massive injection-moulded eyes, which are the absolutely strongest eyes of the market. Likewise we have decided to use metal valves in stead of plastic valves, used in other brands. Our metal valve makes inflation of DAN-FENDER products easy and the air remains where it has to be – in the fender/buoy.

The production of fenders/buoys (rotation moulding) may result in the presence of small invisible air holes in the material, as a consequence of which the product cannot keep the air. In order to test this, all products are tested under water, prior to being delivered to our customers, as a guarantee of the fact that the products delivered will also function as intended. These hidden qualities offer safety to your boat and your fishing.

For more information, please visit www.danfender.com

Correct use of Mooring Buoys

Buoys must be carefully chosen to carry the weight needed. If the buoy does not lie correctly in the water, the mooring will be unsatisfactory. The anchorchain must always be tied to the mooring loop under water. The anchorchain must never be tied to the upper lifting loop!

Fender and Buoy inflation

How do I inflate my DAN-FENDER ® product?

The most simple way is to use an ordinary compressor including the accessory air pistol and then:

  • Remove the plastic screw (if there is one).
  • Press the air pistol against the metal valve.
  • Blow air into the fender/buoy (0.15 bar at 20 degrees C).
  • A fender/buoy shall NOT be as hard as a stone. It shall be easy to form a soft “dent” by pressing.
  • Screw on the plastic screw (if there is one).
  • Now your fender/buoys are ready for use – have fun!

Fender Size Guide

DAN-FENDER-recommended-sizes-buoyDAN-FENDER-recommended-sizes-fenderDAN-FENDER-recommended-sizes-centerholDAN-FENDER-recommended-sizes-minibuyo
10′20″312L
11-18′30″416L517712
17-23′40″520L, 520, 623L,
623, 822
622712, 814
24-30′50″822, 827819, 824814
31-45′50″/60″827, 1025, 1035824
46-60′60/75″1232, 1242
61′-75/100/120/135″1242, 1550, 2255,
3282

Fenders

Item No.1513
Width (mm)400
Length (mm)200
Depth (mm)205
Eye Diam. (mm)18

Standard colours:
ROPEHOLDS = Black
FENDER = White, Blue or Navyblue

Optional colours:
ROPEHOLDS = Grey, Blue,
Navyblue or Red
FENDER = Black or Grey,

Max load:
100 kg / 225 lbs

Product information:

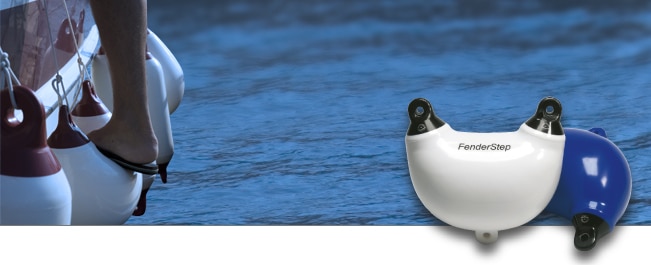

Brilliant! This is the word, which we very often hear about this unique patented product.

Fender Step™ has become a much larger success than we had expected, which is due to the design and the double function as both a fender and a step. Yachts are getting larger and larger, and it may be difficult to enter the boat without using a ladder or a similar thing. A ladder, however, is not very handy and it may scratch the boat, which is not the case when using Fender Step™. At the same time is it easy to find a place for it, as it does not require much space. Is also very useful if you have to enter a dinghy.

Item No.1522
Width (mm)450
Length (mm)560
Depth (mm)180
Weight (kg)2.5

Standard colours:
ROPEHOLDS = Black
FENDER = White, Blue or Navyblue

Optional colours:
ROPEHOLDS = Grey, Blue,
Navyblue or Red
FENDER = Black or Grey,

Max load:
100 kg / 225 lbs

Product information:

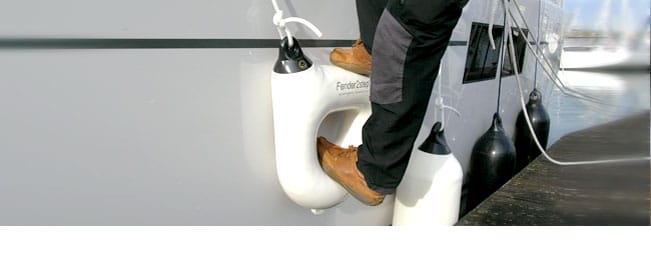

Perfect for boats with high topsides

Fender2step™ has been developed from our proven and very successful FenderStep but now provides an extra step which is really helpful not only for boats with very high topsides, but also on regular sized boats to allow children to safely get on and off and in making boarding from a dinghy even easier. Like FenderStep™ , it is easy to rig at any time, and importantly, BEFORE, entering a Marina, allowing the crew to safely and easily step ashore onto the pontoon, without resorting to leaping!

Item No.5206238228278391025103512321242155022553282
Width (mm)125150200200200250250300300380550800
Length (mm)54064563576510557009408801130137014652050
Buoyancy (kg)5.06.514.023.034.029.039.043.055.0116.0215.0720.0
Eye Diam. (mm)181818282828282828323232

Standard colours:
ROPEHOLDS = Black
FENDER = White, Blue or Navyblue

Optional colours:
ROPEHOLDS = Grey, Blue, Navyblue or Red
FENDER = Black or Grey

Product information:

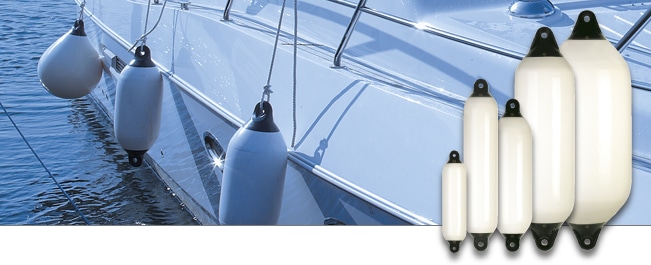

The Heavy-Duty series is not only the flagship of the fender products of DanFender. It is the flagship of all brands of fenders as regards quality, design and first and foremost durability. The purpose of this fender series is to offer maximum safety and protection of your boat, and we have NOT tried to find low-priced solutions, which would, no doubt, come to a compromise as regards quality!

Heavy Duty Fenders are available in all sizes required for boats from about 17 feet up to mega yachts.

Remember that fenders and roping protect your boat for 99% of the time!

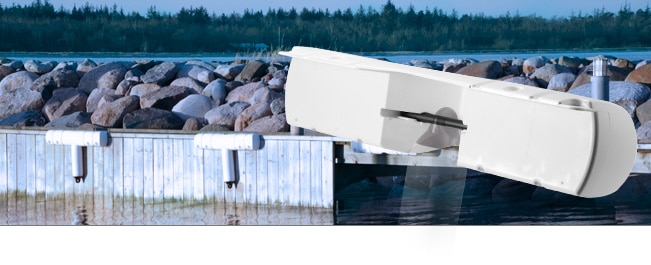

New unique multifunction design allowing you several different use-options with just one product..! As standard the Multi Dock Fender is delivered as a long-side fender, but it can very simple be converted into a corner-fender (up to 90 degree bend, both for inside or outside corner protection). As optional an integration of a centrally mounted DAN-FENDER item 520 for extra vertical protection is possible. This is for example ideal for protection of the swim platform when docking against floating pontoons, but also ideal for long side quays where the tide change the water level or when different sizes of yachts (top-side) docks against the quays. A brilliant and innovative product for multiple use options…!

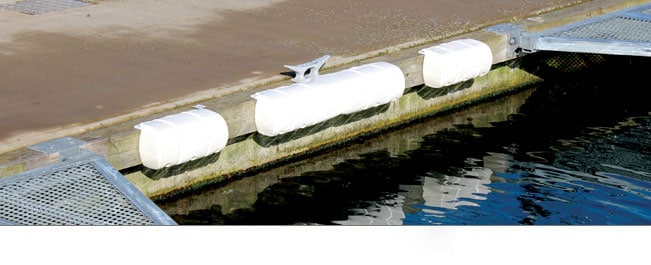

The SHORT multi Dock Fender is based on the same innovative design as the “big brother” the Multi Dock Fender – just shorter. The SHORT multi Dock Fender can almost be mounted everywhere on the quay, pontoon, pontoon fingers…etc. The SHORT multi Dock Fenders design similarities with the Multi Dock Fender makes you able to create not only safe protection for your boat but also a very good looking environment around it.

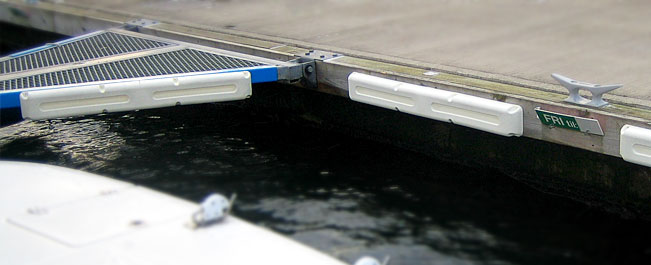

The Mini Dock Fender which is based on the same innovative design as the “big brother” the Multi Dock Fender can almost be mounted everywhere on the quay, pontoon, pontoon fingers…etc.

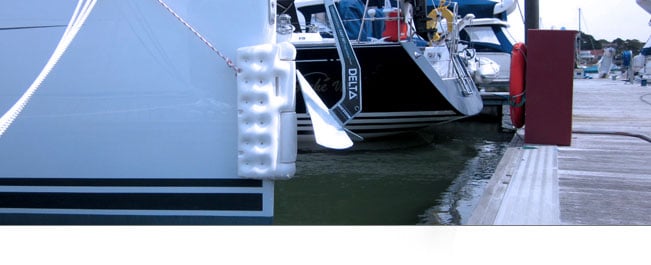

The new FenderFlex™ multi-purpose fender will provide the best protection for bow, stern, dock and topside. The hinged designed FenderFlex™ are indeed flexible, easy to mount or instal for quick and efficient handling. FenderFlex™ is a multi-purpose fender and as such brilliant for use e.g. on topsides, in canals and locks.

FenderFlex™ is extremely cost effective compared with reparing hull damages.

Item No.312416518
Diam. (mm)90102127
Length (mm)320430460
Buoyancy (kg)1.42.34.4
Eye Diam. (mm)121212

Colours:
White or Blue

Product information:

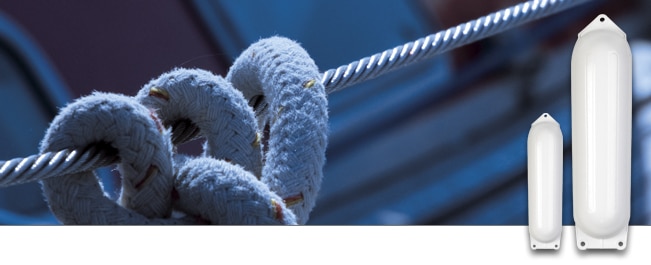

Mini Fenders are, as indicated by the name, our smallest and most economical fenders. This series has also been blow-moulded as DanFender Light, but the size and design are different. It is a functional fender, which as all our other products meet the name of DanFender, which is your guarantee for maximum safety and quality.

Mini Fenders are intended for small boats (about 10 to 20 feet) and for those who wish to have a good, functional DanFender product at a favourable price.

Item No.1313 Small1616 Large
Width * (mm)330400
Diam. ** (mm)102130
Depth (mm)340410
Eye Diam. (mm)1212

* Distance between eyes
** Diameter at thickest place

Colours:
White, Blue or Navyblue Blue

Product information:

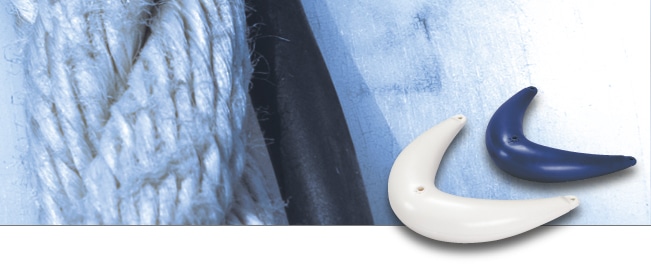

Bow Fenders have been designed in order to protect the stern of the boat. We sell this product to a lot of boat owners who want to avoid damage of stern which could have been avoided in a rather simple and inexpensive way.

Bow Fenders are produced in two sizes and each having 3 eyes, which makes fastening easy and safe, for maximum protection of the stern.

Buoys

Item No.B20B30B40B50B60B75B100*B120*B136*
Width (mm)1602403204054806108109651100
Length (mm)230320480570640790104012401280
Buoyancy (kg)2.08.023.046.072.0118.0280.0540.0675.0
Eye Diam. (mm)181828282828323232
Circumf. (mm)5107601015127015251905254030283429

* Standard with large eye and stainless steel inserts

Standard colours:
ROPEHOLD = Black
BUOY = White or Red

Optional colours:
BUOY = Black, Grey or Yellow

Product information:

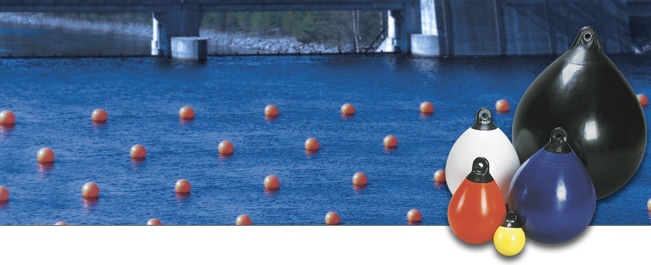

Heavy Duty Marker Buoys / Fenders are of the very highest quality, which to a wide extent is used for navigation, not least by the professional fishing industry, where quality and long lifetime make the product unique compared to other brands. Nothing is saved when producing this product, as it has to fulfil professional expectations as to durability and safety.

This strategy turned out to be the right one as fishermen who have once tried DanFender Heavy Duty Buoys will always come back. The investment pays back rather quickly!

These buoys match Heavy Duty Fenders due to the design.

Item No.PB30
Diam. (mm)240
Length (mm)390
Buoyancy (kg)8.0
Eye Diam. (mm)18
Circumf. (mm)760

Standard colours:
ROPEHOLD = Black
BUOY = Red

Optional colours:
BUOY = White or Yellow

Product information:

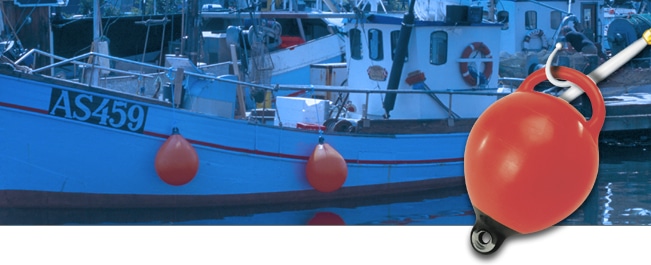

Effective, small buoy which due to its design is easy to pull out of the water. The quality of the Pick-up Buoy is Heavy Duty and therefore it is extremely strong and durable.

The buoy is used both for fishing and sailing. A safe and simple solution for many purposes.

Item No.B20BL
Diam. (mm)160
Length (mm)200
Buoyancy (kg)2.1
Eye Diam. (mm)11
Circumf. (mm)510

Standard colour:
Red

Optional colours:
White or Yellow

Product information:

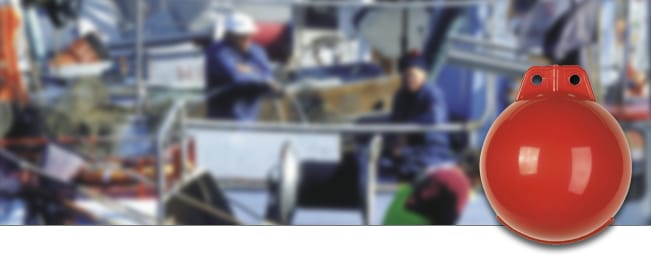

The Mini Buoys from DanFender are made of high quality materials and functionality in spite of the fact that the products are available at competitive prices.

Frequently, these products are used for marking small nets or for grouping areas of aquatics (water ski, rowing, swimming, etc.).

Item No.PE5PE6PE8
Diam. (mm)130160200
Length (mm)160190235
Buoyancy (kg)1.12.14.1
Eye Diam. (mm)111111
Circumf. (mm)413510636

Colour:
Red

Product information:

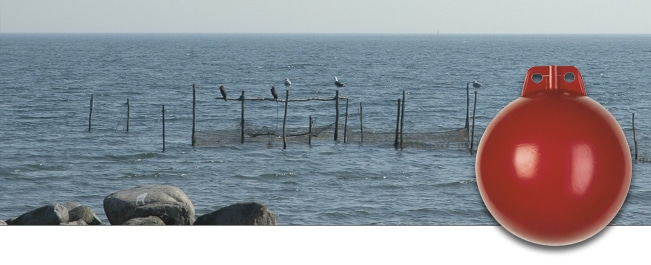

The Mini Buoys from DanFender are made of high quality materials and functionality in spite of the fact that the products are available at competitive prices.

Frequently, these products are used for marking small nets or for grouping areas of aquatics.

Item No.M30M40M50M60M75M100
Diam. (mm)240320405480605810
Length * (mm)290380460500650850
Buoyancy (kg)7.017.034.061.0120.0260.0
Rod Diam. (mm)121216161620
Circumf. (mm)76010151270152519052540

* Length messured without rod.

All rods are hot-galvanized and rilsan treated. Secured with self locking nut – available with short or long rod.
Colours:
White or Red

Optional colours:
Yellow or Blue

Product information:
This DanFender product is one of our strong products and it sells very well. This is first and foremost due to the quality, but also competitive prices compared to quality have make this product popular worlwide.

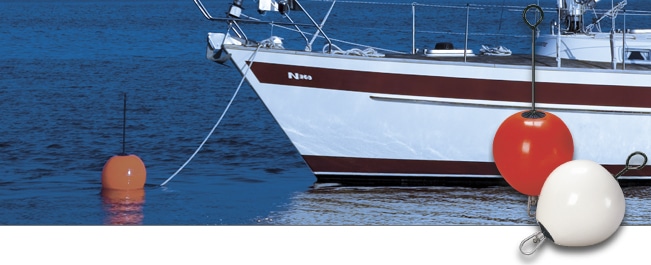

Remember to use the lower eye when you moor your boat to a mooring buoy. Thus the boat will always keep in contact with the anchor. The upper eye is only intended for lift of buoy and double safeguarding.

It is important not to use stainless steel together with galvanized iron, as it will start a galvanic corrosion, causing very quick breakdown / rusting through of the lower eye and the chain.
